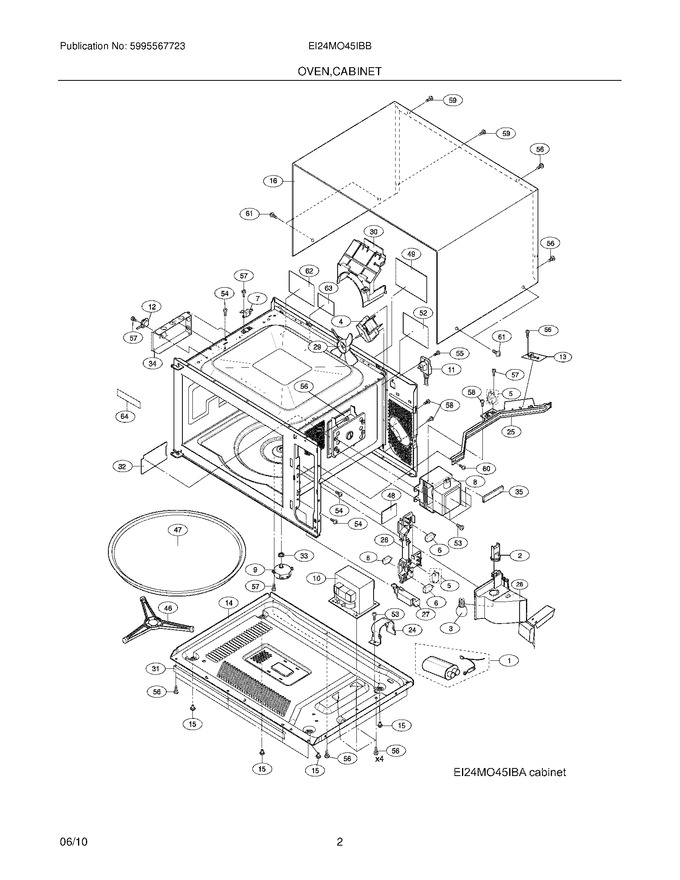

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304464198		Lamp,oven Light			Immediately	$ 39.04
14	5304478938		Base,unit Chassis				$ 147.47
15	5304478939		Foot,cabinet Support				$ 19.06
16	5304478940		Cabinet,outer Casing ,black				$ 320.30
24	5304478941		Retainer,capacitor Strap		Appelez-nous	-
25	5304478942		Bracket,chassis Support		Appelez-nous	-
26	5304503439		Latch Hook   (Replaces: 5304478943)			Immediately	$ 60.62
27	5304485407		Lever,door Release   (Replaces: 5304478944)				$ 63.36
28	5304464197		Duct-magnetron				$ 85.30
30	5304478945		Duct,cooling Fan		Appelez-nous	-
31	5304478946		Filler Strip,base Plate ,bottom		Appelez-nous	-
32	5304478947		Cover,waveguide		Appelez-nous	-
33	5304467718		Bushing,motor Shaft ,turntable				$ 19.14
34	5304478948		Duct,humidity Sensor		Appelez-nous	-
35	5304478949		Cushion,magnetron Pad		Appelez-nous	-
46	5304478951		Support Assy,turntable ,roller		Appelez-nous	-
47	5304529482		Tray,turntable ,glass   (Replaces: 5304440868)				$ 108.44
48	5304467771		Label,caution-monitor		Appelez-nous	-
49	5304467770		Label,caution-dhhs		Appelez-nous	-
52	5304468230		Label,hwc Caution		Appelez-nous	-
53	5303319636		Screw		Appelez-nous	-
54	5303319641		Screw				$ 12.76
55	5304462315		Screw,4 Mm X 12 Mm ,ground		Appelez-nous	-
56	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
57	5304453725		Screw,3mm X 8mm		Appelez-nous	-
58	5304450253		Screw,4 Mm X 8 Mm				$ 14.89
59	5304440873		Screw,torx ,tamper Proof				$ 11.34
60	5304462316		Screw		Appelez-nous	-
61	5304452261		Screw,black ,outer Casing		Appelez-nous	-
62	5304453941		Label,caution ,ul Screw		Appelez-nous	-
63	5304451535		Label,height Caution		Appelez-nous	-
64	5304472255		Label,menu		Appelez-nous	-
F1	5304487566		Capacitor/rectifier Assy,hv   (Replaces: 5304462258)			Immediately	$ 122.62
F10	5304473321		Transformer,power				$ 253.64
F11	5304478937		Power Cord,electric				$ 68.75
F12	5304440785		Sensor,humidity ,cook Control				$ 56.18
F13	5304493151		Filter,noise ,electronic   (Replaces: 5303322968)				$ 54.76
F2	5303319561		Receptacle,lamp Socket ,oven				$ 61.45
F29	5304467720		Fan Blade,mag Cooling Fan				$ 17.64
F4	5304493152		Motor,cooling Fan   (Replaces: 5304448490)				$ 87.43
F5	5304468224		Switch Kit,monitor ,with Ct Fuse   (Replaces: 5304440027)			Immediately	$ 83.14
F6	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F7	5304440780		Fuse,cavity Temp ,20 Amp ,250 V				$ 85.76
F8	5304521745		Magnetron   (Replaces: 5304472253)				$ 189.05
F9	5304440021		Motor,turntable				$ 82.64
