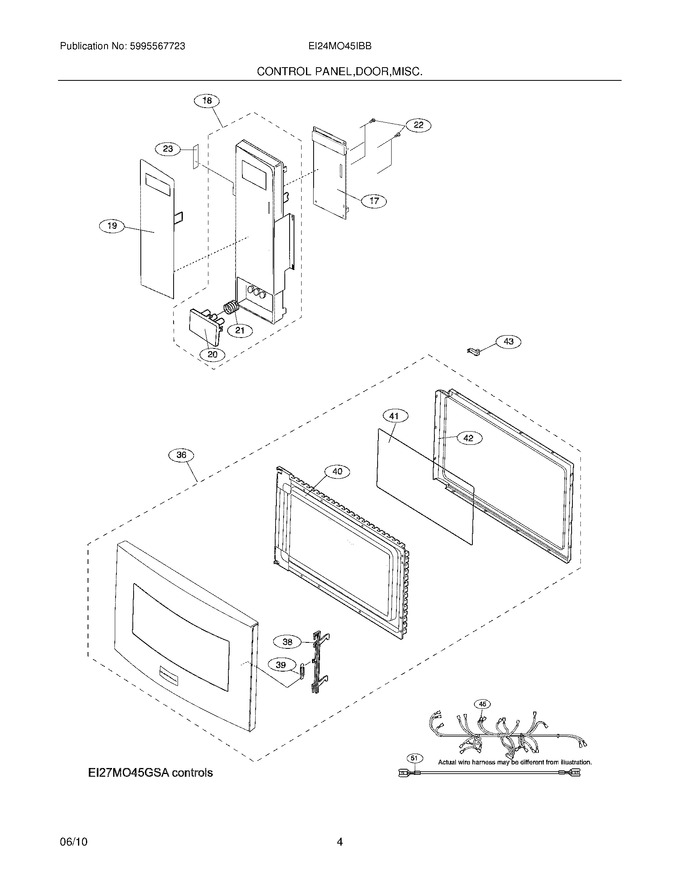

05 - Control Panel,door,misc.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	5304464196		Push Button,door ,black				$ 71.59
21	5303319583		Spring, Door Button		Appelez-nous	-
22	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
23	5304468232		Label,user Caution		Appelez-nous	-
36	5304472254		Door Assy,complete ,black				$ 428.09
38	5304441893		Latch,door   (Replaces: 5304440856)			Immediately	$ 48.91
39	5304440316		Spring,door Latch			Immediately	$ 61.00
40	5304440857		Panel,inner Door ,black				$ 192.29
41	5304440860		Seal,door ,film				$ 63.09
42	5304440861		Choke Cover,inner Door				$ 73.02
43	5304442145		Door Stop		Appelez-nous	-
F17	5304464192		Control Board,printed Circuit			Immediately	$ 492.32
F18	5304513655		Control Panel Assy,frame ,black   (Replaces: 5304464194)				$ 374.08
F19	5304513655		Touch Control,key Pad ,black   (Replaces: 5304464898)				$ 374.08
F45	5304478950		Wiring Harness,main		Appelez-nous	-
F51	5304440870		Wire,high Voltage-a		Appelez-nous	-
