SELECT A DIAGRAM

01 - Console


02 - Tub, Lit/optional


03 - Door


04 - Heater, Pump And Lower Sprayarm


05 - Dishrack And Panel


06 - 302740 Pump


07 - Wiring Harness

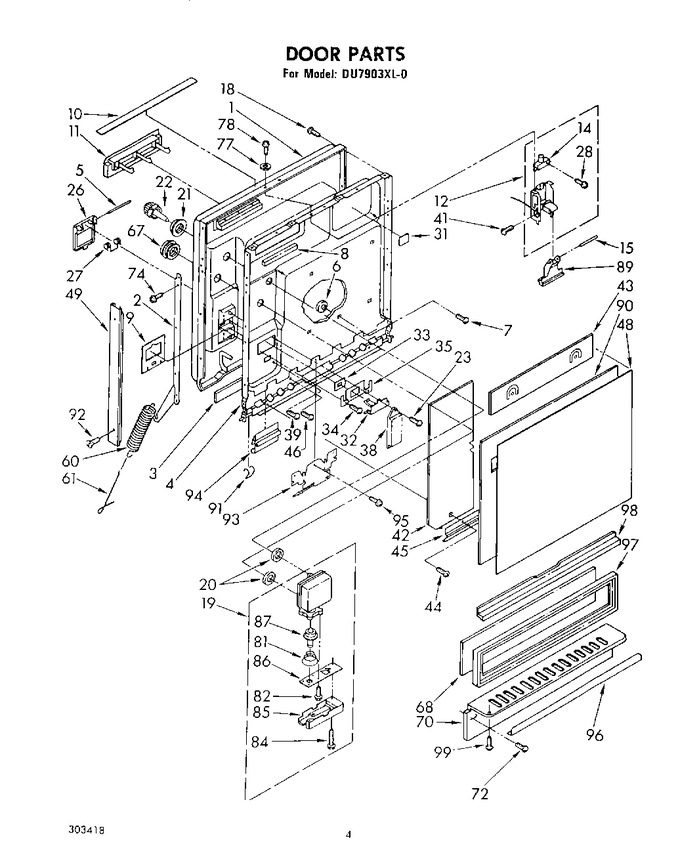

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	303269		Door, Inner (includes Illus. 4)		Appelez-nous	-
2	303196		Support Door (l.h.)		Appelez-nous	-
2	303197		Support, Door (r.h.)		Appelez-nous	-
3	717921		Gasket, Door		Appelez-nous	-
4	303202		Liner, Door		Appelez-nous	-
5	4387043		Pin, Lid Hinge   (Replaces: 300115)				$ 42.50
6	300239		Button, Retainer (5)		Appelez-nous	-
7	300250		Screw, 8-18 X 3/8 Hi-lo (5)		Appelez-nous	-
8	719860		Baffle		Appelez-nous	-
9	303978		Baffle		Appelez-nous	-
10	LIT303498		Label, User Guide		Appelez-nous	-
11	300246		Screen, Vent		Appelez-nous	-
12	300235		Latch Assembly		Appelez-nous	-
14	16600		Switch, Interlock (alternate)   (Replaces: 300232)				$ 6.18
14	303075		Switch, Interlock (alternate)		Appelez-nous	-
15	300234		Pin, Pivot		Appelez-nous	-
18	WP488729		Screw, 8 X 1/2 Truss Head Tapping (2)   (Replaces: 301458)			Immediately	$ 7.01
19	719341		Dispenser, Wetting Agent		Appelez-nous	-
20	713080		Washer (2)		Appelez-nous	-
21	718575		Nut, 1-14 Buttress Thread (1)		Appelez-nous	-
22	303163		Indicator, Level		Appelez-nous	-
23	718250		Screw, 8 X 1/2 Hi-lo Blunt Point		Appelez-nous	-
26	4387043		Lid, Detergent Dispenser Assembly   (Replaces: 300155)				$ 42.50
27	WP8066018		Spring, Lid   (Replaces: 300106)			Immediately	$ 7.15
28	301582		Screw, 6-32 X 1 Hex-head Tapping (1)		Appelez-nous	-
31	302460		Pad, Rubber		Appelez-nous	-
32	300119		Lever, Catch		Appelez-nous	-
33	300105		Seal, Lever				$ 5.70
34	718250		Screw, 8 X 1/2 Hi-lo Blunt Point (2)		Appelez-nous	-
35	300104		Retainer, Seal		Appelez-nous	-
38	300109		Actuator		Appelez-nous	-
39	718250		Screw, 8 X 1/2 Hi-lo Blunt Point (1)		Appelez-nous	-
41	WP90767		Screw, 8a X 3/8 Ground (1)   (Replaces: 90767)			Immediately	$ 7.04
42	303223		Barrier, Door		Appelez-nous	-
43	303222		Barrier, Console		Appelez-nous	-
44	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
45	301971		Panel Edging, Door		Appelez-nous	-
46	WP90767		Screw, 8a X 3/8 Ground (1)   (Replaces: 90767)			Immediately	$ 7.04
49	303501		Trim, Door (2)		Appelez-nous	-
60	716425		Spring, Door		Appelez-nous	-
61	716401		Retainer, Spring				$ 35.28
67	718576		Cap, Drip		Appelez-nous	-
70	303144		Plate, Toe		Appelez-nous	-
72	WP302868		Screw, 8-18 X 1/2 Hex-head Tapping (4)   (Replaces: 302868)			Immediately	$ 6.98
74	WP488627		Screw, 8-18 X 1/2 (4)   (Replaces: 300128)				$ 6.81
77	300237		Washer		Appelez-nous	-
78	WP90767		Screw, 8a X 3/8 Hex Head Tapping (2)   (Replaces: 90767)			Immediately	$ 7.04
81	718592		Spring, Conical		Appelez-nous	-
82	WP98165		Screw, 8-18 X 5/8 Hex-head Slotted (3)   (Replaces: 98165)				$ 7.20
84	WP488163		Screw, 8-18 X 1/2   (Replaces: 98810)				$ 6.79
85	718646		Acutator Assembly		Appelez-nous	-
86	718596		Plate		Appelez-nous	-
87	718595		Diahpragm, Pin Assembly		Appelez-nous	-
89	300230		Lever, Release		Appelez-nous	-
90	301957		Spacer, Corrugated		Appelez-nous	-
91	301857		Clip, Wire (2)		Appelez-nous	-
92	302251		Screw, 8 X 1/2 (4)		Appelez-nous	-
93	303362		Shield, Harness		Appelez-nous	-
94	303121		Retainer, Clip		Appelez-nous	-
95	WP90767		Screw, 8a X 3/8 Hex Head Tapping   (Replaces: 90767)			Immediately	$ 7.04
96	301815		Flange, Accessory Panel		Appelez-nous	-
97	301814		Frame, Lower Panel		Appelez-nous	-
98	1039949		Flange, Access Panel Frame   (Replaces: 301816)		Appelez-nous	-
99	WP965173		Screw, 8 X 3/8 (4)   (Replaces: 345304)			Immediately	$ 9.65

    View Diagram in Separate Window       Print Part List
