01 - Console


02 - Tub, Lit/optional


03 - Door


04 - Heater, Pump And Lower Sprayarm


05 - Dishrack And Panel


06 - 302740 Pump


07 - Wiring Harness

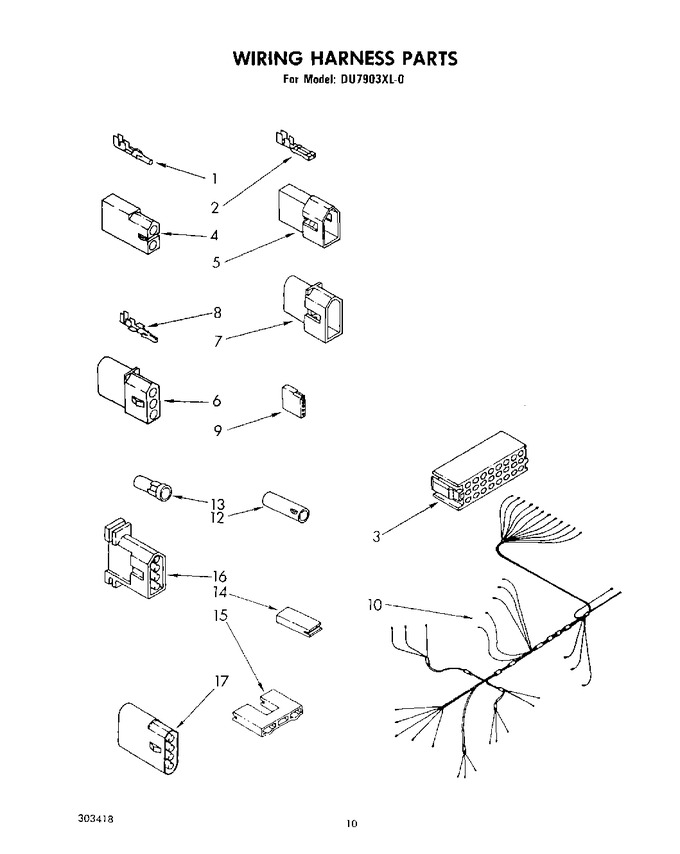

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
2	352088		Terminal, Female				$ 5.83
3	W10876590		Disconnect Block, Timer   (Replaces: 352089)				$ 11.48
4	717252		Receptacle, Terminal (2-way)		Appelez-nous	-
5	717253		Plug, Terminal		Appelez-nous	-
6	353425		Receptacle, Terminal (3-way)		Appelez-nous	-
7	353424		Plug, Terminal				$ 18.95
8	94613		Terminal		Appelez-nous	-
9	719585		Receptacle (5-circuit)		Appelez-nous	-
10	303434		Harness, Wiring		Appelez-nous	-
12	351296		Receptacle		Appelez-nous	-
13	351297		Plug		Appelez-nous	-
14	358736		Connector Block (alternate)		Appelez-nous	-
14	301219		Connector Block (alternate)		Appelez-nous	-
15	374230		Connector Block (alternate)		Appelez-nous	-
15	300708		Connector, Block (alternate)		Appelez-nous	-
16	717316		Plug Connector		Appelez-nous	-
17	717315		Receptacle, 4-wa		Appelez-nous	-
