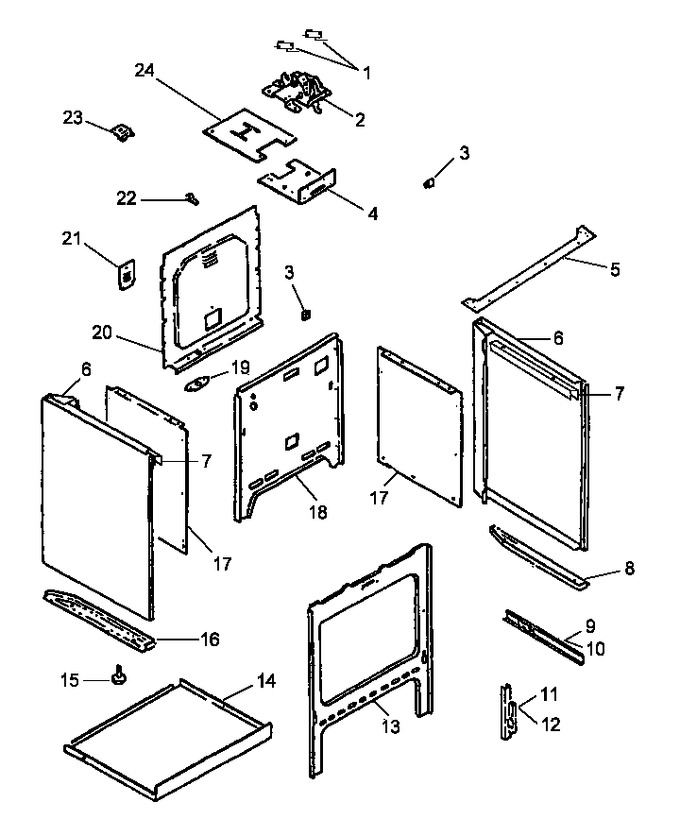

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0314277		Switch, Door Latch		Appelez-nous	-
2	Y0309430		Latch, Oven Door		Appelez-nous	-
3	Y0091587		Cable, Clip Esm		Appelez-nous	-
4	Y0309428		Bracket, Latch Mtg.		Appelez-nous	-
5	Y0314891		Brkt, Maintop (painted)		Appelez-nous	-
6	306081W		Panel, Side (wht)		Appelez-nous	-
7	Y0304019		Channel, Broil Burner		Appelez-nous	-
8	314885B		Brace, Leveling Leg (rt)		Appelez-nous	-
9	Y0314662		Track, Storage Dwr Lh		Appelez-nous	-
10	0314663		Track, Storage Dwr Rh		Appelez-nous	-
11	Y0314572		Kit, Door Hinge(lh-hs)		Appelez-nous	-
12	Y0314575		Kit, Door Hinge(rh-ss)		Appelez-nous	-
14	Y0309061		Retainer, Insulation (bottom)		Appelez-nous	-
15	314187B		Leg,leveling Xxx		Appelez-nous	-
16	314884B		Brace, Leveling Leg (lt)		Appelez-nous	-
17	0304282		Retainer, Insulation (side)		Appelez-nous	-
18	0309081		Retainer, Rear Insul.		Appelez-nous	-
19	0058311		Plate, Main Inlet Wire		Appelez-nous	-
20	Y0307342		Cover, Rear		Appelez-nous	-
21	Y0058435		Access Plate, Rear		Appelez-nous	-
22	0306652		Fastener, Clip		Appelez-nous	-
22	Y0307456		Clamp, Tube (1/2``)		Appelez-nous	-
23	Y0302316		Bracket, Switch		Appelez-nous	-
24	Y0063353		Retainer, Oven Light		Appelez-nous	-
NI	Y0301028		Bracket		Appelez-nous	-
NI	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
NI	Y0306150		Brkt, Hinge Strap Mtg		Appelez-nous	-
NI	Y0041813		Screw Cabinet Trim		Appelez-nous	-
NI	Y0304019		Channel, Broil Burner		Appelez-nous	-
NI	Y0305004		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
NI	Y0301555		Anchor, Plastic		Appelez-nous	-
NI	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
