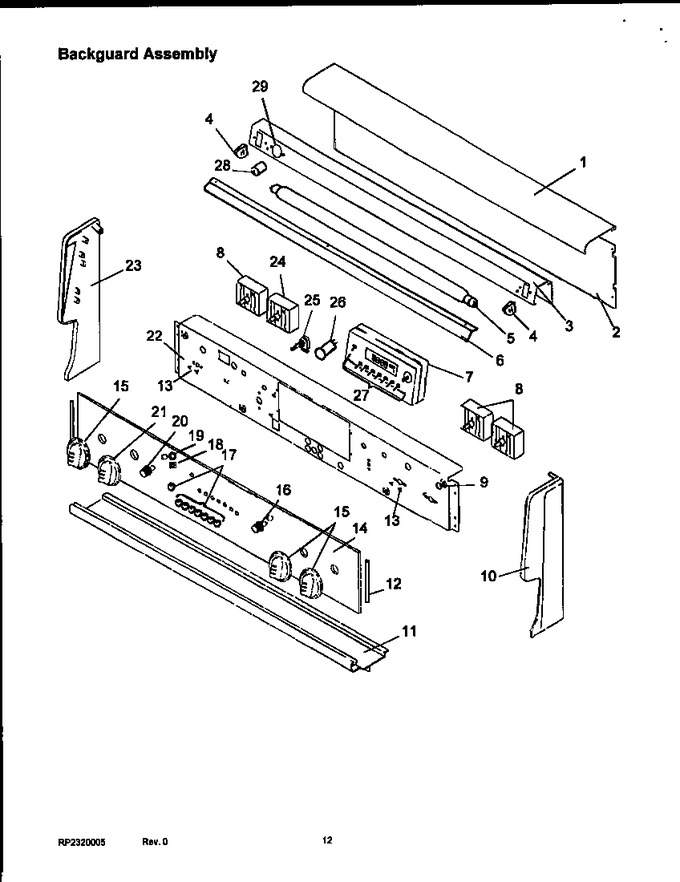

01 - Cabinet Assy
02 - Electrical Components
03 - Main Top Assy
04 - Oven Assy
05 - Oven Door Assy
06 - Page 4
07 - Storage Drawer Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 305296W | Top Trim Backguard |
|
- | |||||
| 2 | 0309137 | Cover, Backguard |
|
- | |||||
| 3 | 307211B | Bracket, Light |
|
- | |||||
| 4 | Y0304559 | Lamp Holder-floures |
|
- | |||||
| 5 | WPY0067945 | Lamp, Flourescent (Replaces: Y0067945) |
|
$ 29.33 | |||||
| 6 | 0304977 | Light Diffuser Backguard-clear |
|
- | |||||
| 6 | 314934W | Shield, Light (wht) |
|
- | |||||
| 7 | Y0309441 | Erc 3, Elec. Auto Latch |
|
- | |||||
| 8 | W11121639 | Switch, Infinite (Replaces: Y0309862) |
|
$ 149.17 | |||||
| 9 | Y0309627 | Bumper, Rubber |
|
- | |||||
| 10 | 304928W | End Cap-bkgd Lt/rt (wht) |
|
- | |||||
| 11 | 314603W | Trim, Lower Bkgd (wht) |
|
- | |||||
| 12 | Y0305322 | Channel Glass (wht) |
|
- | |||||
| 13 | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| 14 | 0308054 | Glass, Cntrl Pnl(white) |
|
- | |||||
| 15 | 309870W | Knob, Infinite Switch (wht) |
|
$ 16.09 | |||||
| 16 | 308385W | Knob, Clock (white) |
|
- | |||||
| 17 | 309887W | Button, Erc (wht) |
|
- | |||||
| 18 | Y0065052 | Speednut |
|
- | |||||
| 19 | Y065051W | Bezel, Panel Switch (wht) |
|
- | |||||
| 20 | 306675W | Knob, Light Switch (wht) |
|
- | |||||
| 21 | Y0306229 | Knob, Dual Inf Switch (wht) |
|
- | |||||
| 22 | Y0309723 | Panel, Control |
|
- | |||||
| 23 | 304927W | End Cap-bkgd Lt/rt (wht) |
|
- | |||||
| 24 | 0309549 | Switch, Dual Infinite (wht) |
|
- | |||||
| 25 | Y0306673 | Switch, Oven Light, Rotary |
|
- | |||||
| 26 | 0307343 | Light, Ind (white) |
|
- | |||||
| 27 | 0309888 | Pin, Actuator |
|
- | |||||
| 28 | 0071920 | Starter, Flourescent |
|
- | |||||
| 29 | Y0304560 | Start Holdr-flour.lmp |
|
- | |||||
| NI | Y0305391 | Collar, Starter Socket |
|
- | |||||
| NI | 0306589 | Support, Bkgd (lh) |
|
- | |||||
| NI | 0306590 | Support, Bkgd (rh) |
|
- | |||||
| NI | Y0073657 | Screw, No.6-20 X .375 Pan Hd Ph |
|
- | |||||
| NI | Y0076175 | Nut |
|
- | |||||
| NI | 0069187 | Tape, Seal 1=1ft |
|
- | |||||
| NI | 0314373 | Hinge, Strap |
|
- | |||||
| NI | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 11.55 |
