SELECT A DIAGRAM

01 - Cover


03 - Freezer Drawer,baskets


05 - Fresh Food Door

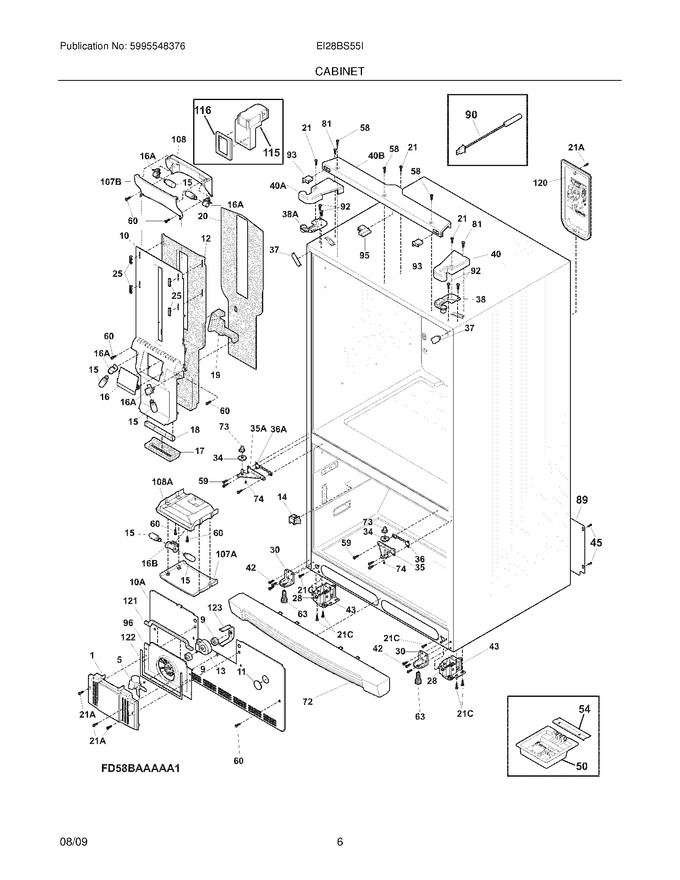

07 - Cabinet


09 - Shelves


11 - Cooling System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7241859701		Cover-fan		Appelez-nous	-
9	7241518301		Bushing,motor Mounting		Appelez-nous	-
10	7241860001		Cover-air Duct		Appelez-nous	-
11	75303208309		Plug-hole,factory Test		Appelez-nous	-
12	7241859901		Foam-air Supply		Appelez-nous	-
13	809069220		Motor,evaporator Fan   (Replaces: 7241509402)			Immediately	$ 154.14
15	5304517886		Light Bulb   (Replaces: 7241552801)			Immediately	$ 73.06
16	7241860501		Cover-damper		Appelez-nous	-
17	241928201		Gasket-air Duct   (Replaces: 7241928201)				$ 17.72
18	7241928101		Duct-air		Appelez-nous	-
19	7241871901		Support-eps Damper		Appelez-nous	-
20	7241922901		Cover-air Duct,rear		Appelez-nous	-
21	7241732101		Screw,10-32 X 1/2		Appelez-nous	-
25	7241949501		Clip,air Vent		Appelez-nous	-
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 7240335502)			Immediately	$ 31.33
30	7241778701		Bracket-anti Tip		Appelez-nous	-
34	241868301		Washer   (Replaces: 7241868301)				$ 31.19
35	7241763001		Bracket-lower Hinge,rh ,w/hinge Pin		Appelez-nous	-
36	7241868201		Spacer,door ,lower Rh		Appelez-nous	-
37	7240337608		Trim-cabinet Corner,white ,(2)		Appelez-nous	-
38	241761301		Bracket-upper Hinge,rh   (Replaces: 7241761301)				$ 66.25
40	7241778005		Cover-upper Hinge,white ,rh		Appelez-nous	-
42	7240578902		Screw,hex Head ,1/4-20 X 5/8		Appelez-nous	-
43	5304499445		Roller Assy,front ,(2)   (Replaces: 7240335006)			Immediately	$ 31.33
45	7241500303		Screw,hex Washer Head ,8-18ab X 0.500		Appelez-nous	-
50	5303918508		Board-main Power,w/housing   (Replaces: 7241996302)				$ 1,113.35
54	241532401		Channel   (Replaces: 7241532401)				$ 30.47
58	7241853201		Screw,no.8-18 X 1/2		Appelez-nous	-
59	7240442708		Screw-no.10-32 X 3/4,white		Appelez-nous	-
60	75304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile		Appelez-nous	-
63	216396900		Screw,leveling Foot ,plastic ,adjustable   (Replaces: 7216396900)			Immediately	$ 38.39
72	7241930303		Grille/kickplate,white		Appelez-nous	-
73	5303918453		Cam-lower Hinge   (Replaces: 7241868601)				$ 49.62
74	7218755401		Screw-set,10-32 X 0.375		Appelez-nous	-
81	7242025601		Screw,hex Head ,no.10-32 X 3/8		Appelez-nous	-
89	7241733905		Cover-access,w/label		Appelez-nous	-
90	240597220		Sensor   (Replaces: 7240597203)			Immediately	$ 5.16
92	7241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg		Appelez-nous	-
93	7241835501		Switch-light,white		Appelez-nous	-
95	7241530501		Sensor,humidity		Appelez-nous	-
96	7241860601		Cover-evaporator		Appelez-nous	-
108	7241971401		Cover-wiring,top Air Duct		Appelez-nous	-
115	7241518501		Damper,motorized		Appelez-nous	-
116	7241518601		Seal-damper,foam		Appelez-nous	-
121	7241860103		Gasket-evap,upper		Appelez-nous	-
122	7241860102		Gasket-evap,bottom		Appelez-nous	-
123	242135301		Clip,evap Fan Motor   (Replaces: 7241517701)				$ 7.79
10A	7241860401		Cover-evap Coil,lower		Appelez-nous	-
16A	240590403		Socket-light,top & Mid   (Replaces: 7240590401)				$ 26.54
16B	7241622802		Socket-light,frz Light		Appelez-nous	-
21A	7241953901		Screw,no.8-18		Appelez-nous	-
21C	7218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500		Appelez-nous	-
35A	241767212		Bracket-lower Hinge,white   (Replaces: 7241763002)				$ 103.90
36A	241868202		Spacer,door ,lower Lh   (Replaces: 7241868202)				$ 23.51
38A	241761302		Bracket-upper Hinge,lh   (Replaces: 7241761302)				$ 64.49
40A	7241778006		Cover-upper Hinge,white ,lh		Appelez-nous	-
40B	7241862403		Cover-upper Hinge,white ,center		Appelez-nous	-
F107	7241971601		Shield-light,frzr		Appelez-nous	-
F107	7241971201		Shield-light,top Air Duct		Appelez-nous	-
F108	7241971801		Cover-wiring,freezer Light		Appelez-nous	-
F10A	7241860105		Gasket-coil Cover		Appelez-nous	-
F10A	7241860104		Gasket-coil Cover		Appelez-nous	-
F120	7241956701		Board Assembly,control ,ice Maker		Appelez-nous	-
F14	7240505801		Switch,light/lamp		Appelez-nous	-
F16A	7241969202		Harness-wiring,top Light		Appelez-nous	-
F16B	7241510802		Harness-wiring,frz Light		Appelez-nous	-
F40B	7241850701		Harness-hinge Jumper,hinge Jumper		Appelez-nous	-
F5	5308000010		Fan Blade,red ,evaporator Fan   (Replaces: 75308000010)			Immediately	$ 49.03
NI	7241859801		Cover-eps,damper		Appelez-nous	-
NI	7242004801		Insulation-air Duct,foam Strip		Appelez-nous	-
NI	241953904		Screw,no.8-18   (Replaces: 7241953904)				$ 10.63
NI	7240479601		Plug,button ,cab Liner Holes		Appelez-nous	-
NI	7242006901		Duct-air,freezer		Appelez-nous	-
NI	7215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft		Appelez-nous	-
NI	75303918416		Thermistor Kit,t-3 Suction Lin ,icemaker		Appelez-nous	-
NI	7241969201		Harness-wiring,mid-light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
