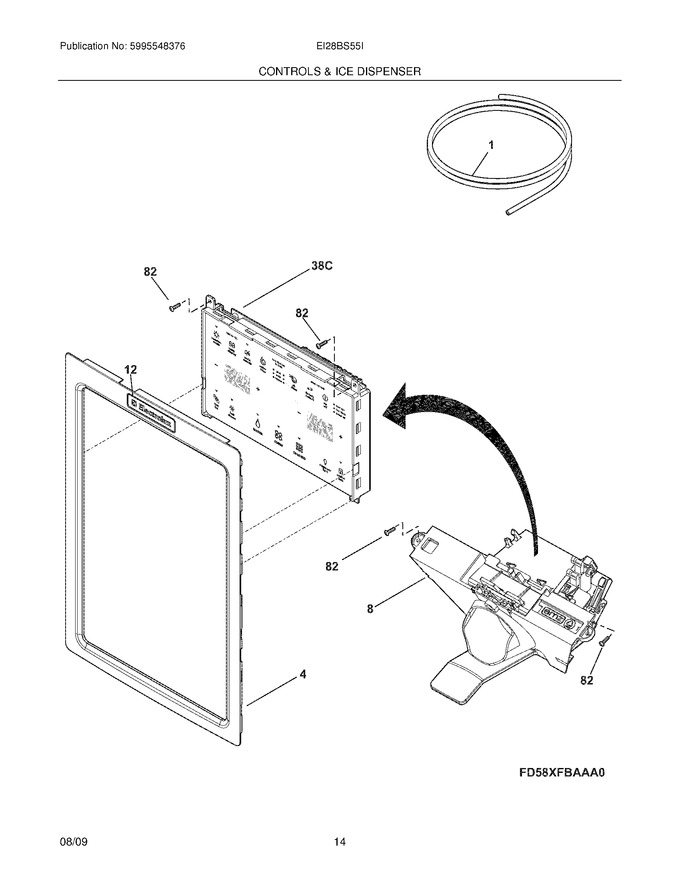

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7218976424		Tube-water Inlet,64.00`` ,yellow		Appelez-nous	-
4	7241757504		Cover-module,stainless		Appelez-nous	-
8	7241753406		Module-dispenser,clear		Appelez-nous	-
12	241873301		Nameplate,electrolux ,stainless   (Replaces: 7241873301)				$ 11.15
82	241953902		Screw,no.8 - 18 X .380   (Replaces: 7241953902)			Immediately	$ 17.11
38C	7241836008		Board-control		Appelez-nous	-
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 75303918371)				$ 317.38
NI	7218976423		Tube-water Inlet,56.00`` ,brown/tan		Appelez-nous	-
NI	7241820502		Harness-wiring		Appelez-nous	-
NI	7241920101		Tube-water Inlet,green ,valve To I.m.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
