SELECT A DIAGRAM

01 - Cover Sheet

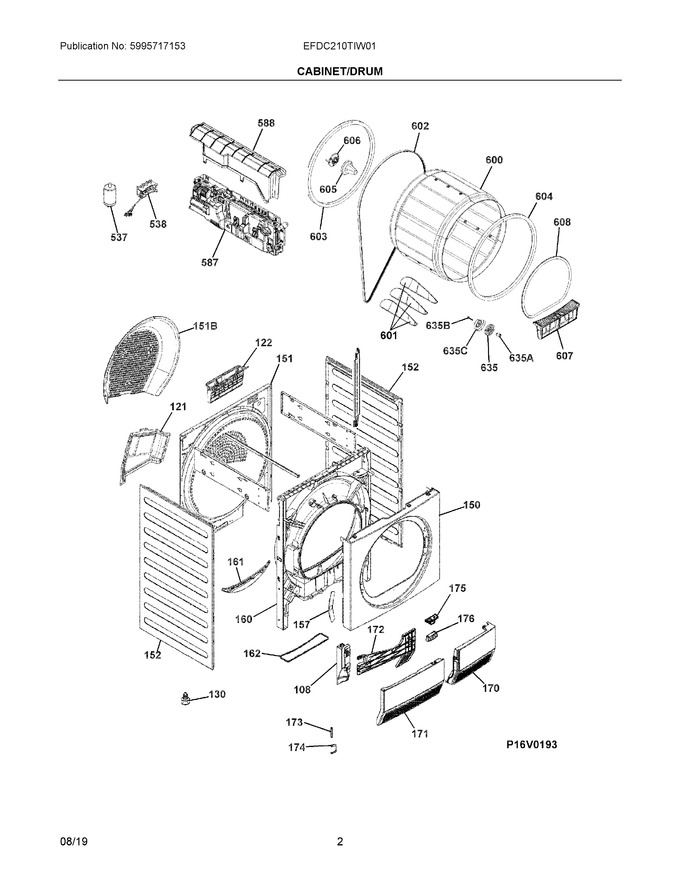

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
108	136655202		Hinge, Condenser Door				$ 181.73
121	405541956		Cover Kit, Heating Element, W/gasket				$ 41.81
122	136602703		Grating, Protection, Heating Element				$ 353.91
130	899647060471		Leg, Level, Adjust			Immediately	$ 71.68
150	136436000		Panel, Front, White				$ 342.42
151	136600571		Panel, Back Asmy, P10, Sahara		Appelez-nous	-
152	5304526177		Panel, Side, White, Insulation   (Replaces: A13207501)			Immediately	$ 155.10
157	136608900		Cover Plate, Door Lock, White				$ 43.20
160	136600457		Duct, Air, Front, Lamp				$ 276.52
161	136605801		Support, Humidity Sensor				$ 61.95
162	136606100		Gasket, Filter				$ 48.20
170	136655102		Cover, Fr/rt Kickplate, White				$ 128.89
171	4055735239		Door, Outer, White, Plinth   (Replaces: 136655005)		Appelez-nous	-
172	136655501		Door, Inner, White, Support		Appelez-nous	-
173	112331110		Hinge Pin, Door, Plinth		Appelez-nous	-
174	136608100		Spring, Door, Plinth		Appelez-nous	-
175	136602401		Button, Door, White				$ 28.35
176	405540465		Support Kit, Button, Door, W/spring		Appelez-nous	-
537	808089303		Filter, Anti-interfer, Power Cable				$ 240.03
538	A01517003		Terminal Block, Asmy, Wiring, Ul				$ 173.08
587	5304522655		Board, Control, Configured				$ 373.51
588	136006502		Cover, Main Board, Whiteshark		Appelez-nous	-
600	136603050		Drum, Complete				$ 316.81
601	807519102		Vane, Drum, 298.3mm, Grey		Appelez-nous	-
602	809183801		Belt, Drive, L=1886.7mm				$ 50.46
603	136424300		Gasket, Drum, Back, 1683mm				$ 161.17
604	136808930		Gasket, Ft, Lg Opening, 17.5x20x1683mm			Immediately	$ 132.09
605	136655401		Cone, Agitator, Anti-entangle				$ 62.56
606	136623702		Cone, Anti-entangle, Base				$ 34.31
607	136601901		Filter, Fluff				$ 193.49
608	5304537467		Gasket, Lg Opening, Front   (Replaces: 136606311)				$ 21.54
635	807787703		Roller, Support, Drum		Appelez-nous	-
151B	405542582		Bulkhead Kit, Rear, Plastic, W/insl Mat				$ 82.03
175A	405512360		Button, Door, White		Appelez-nous	-
635A	125425004		Bushing, Support, Roller				$ 129.70
635B	124022201		Bolt, 5, 5x38				$ 43.95
635C	809166602		Cover, Metal, Roller				$ 26.76
NI	136608610		Felt, Disc, ?24/?12mm				$ 48.91
NI	5304505408		Power Cord, Electric Svce, 240, 4-wire Canada   (Replaces: 134502300)				$ 194.62

    View Diagram in Separate Window       Print Part List
