View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet/drum
03 - Front Panel/lint Filter

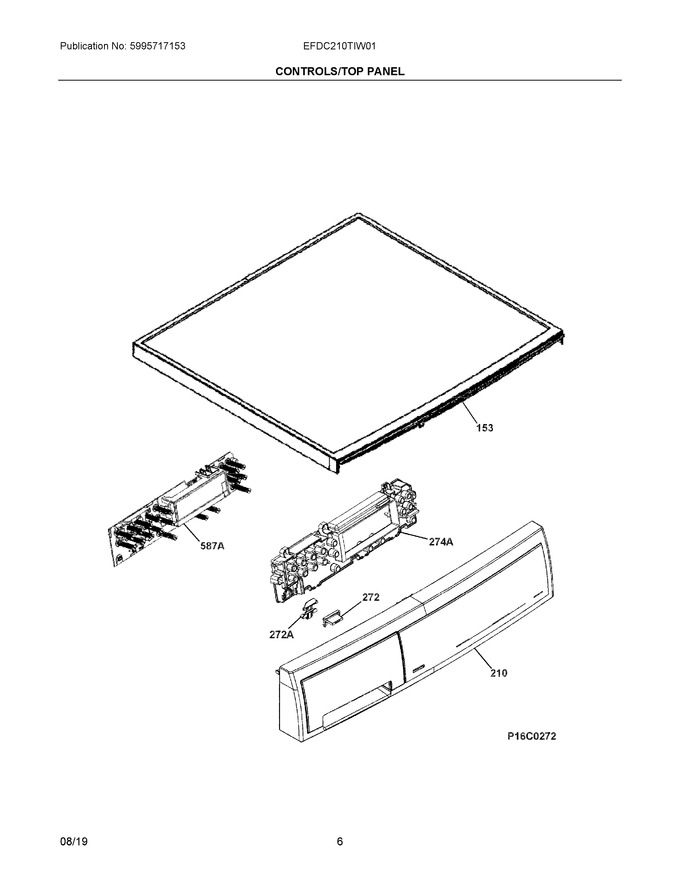

04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 153 | A03616909 | Panel, Top Assy., 597x501.6mm, White |
|
$ 187.62 | |||||
| 210 | 136815041 | Panel, Control, White, W/handle |
|
$ 287.05 | |||||
| 272 | 136658511 | Button, Rect On/off, Silver |
|
$ 88.93 | |||||
| 272A | 136658601 | Spring, Button, On/off |
|
$ 36.87 | |||||
| 274A | 136659600 | Diffuser, Support, Luminous Diode |
|
$ 101.12 | |||||
| 587A | A10066611 | Pc Board, Control, User Interface, Assembly |
|
$ 298.58 |
