SELECT A DIAGRAM

01 - Body


02 - Burner Assy.


03 - Control Panel


04 - Door (lower)


05 - Door (upper)

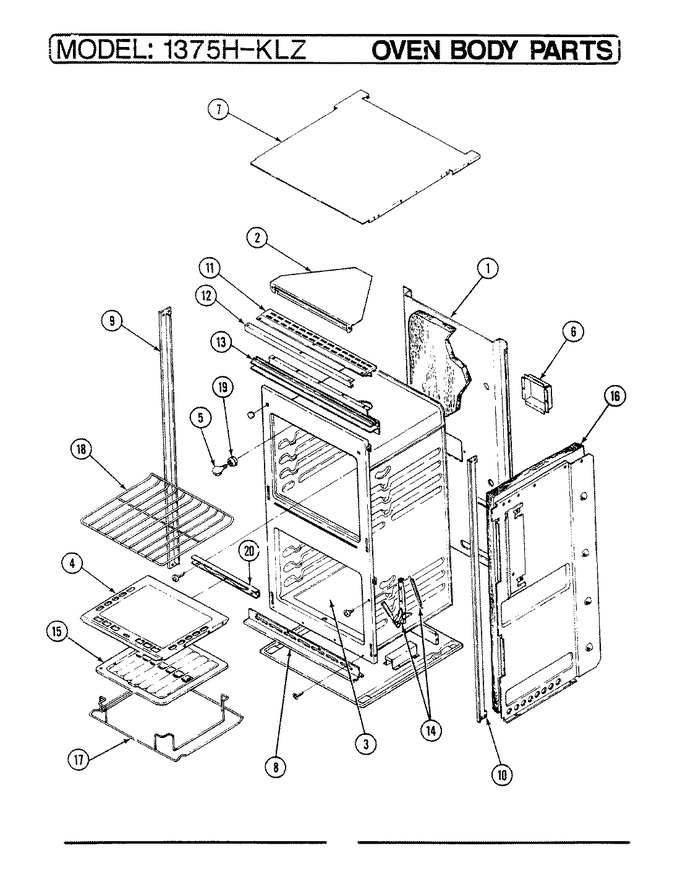

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F041-51		Back, Main	1	Appelez-nous	-
2	4006W008-23		Flue Box Assy	1-4	Appelez-nous	-
2	4006W077-23		Box Assy, Flue	5	Appelez-nous	-
3	2205F005-16		Bottom, Oven	1	Appelez-nous	-
4	2205F008-16		Bottom, Oven	1	Appelez-nous	-
5	40A15		Bulb, Oven   (Replaces: 7407P026-60)	1		Immediately	$ 1.98
6	4005F088-80		Cover	1	Appelez-nous	-
7	W10204425		Cover Box Wall Oven   (Replaces: 4005F152-51)	1	Appelez-nous	-
8	7706P153-60		Extrusion, Bottom (blk)	1	Appelez-nous	-
9	7706P112-60		Extrusion, Side-l	1-4	Appelez-nous	-
9	7750P014-60		Extrusion, Side-l	5	Appelez-nous	-
10	7706P113-60		Extrusion, Side-r	1-4	Appelez-nous	-
10	7750P015-60		Extrusion, Side-r	5	Appelez-nous	-
11	7706P114-60		Extrusion, Top	1	Appelez-nous	-
12	7756P013-60		Extrusion, Top Front	1	Appelez-nous	-
13	7756P008-60		Extrusion, Vent	1-4	Appelez-nous	-
13	7756P027-60		Extrusion Vent	5	Appelez-nous	-
14	7106A013-60		Hinge, Lower Door	1	Appelez-nous	-
14	7106A018-60		Hinge, Oven Door	2	Appelez-nous	-
14	7106A015-60		Hinge, Upper Door	1	Appelez-nous	-
14	7106A020-60		Hinge, Oven Door	2	Appelez-nous	-
15	4396923		Pan, Broil   (Replaces: 3401F004-23)	1		Immediately	$ 52.04
16	2618F056-51		Panel, Side-lt	1	Appelez-nous	-
16	2618F055-51		Panel, Side Right	1	Appelez-nous	-
17	7801P016-60		Rack, Broil Bright Chrome	1	Appelez-nous	-
18	7801P005-60		Rack	1	Appelez-nous	-
19	7408P001-60		Recept, Oven Light	1	Appelez-nous	-
20	3807P027-15		Support, Oven Bottom	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
