SELECT A DIAGRAM
01 - Body

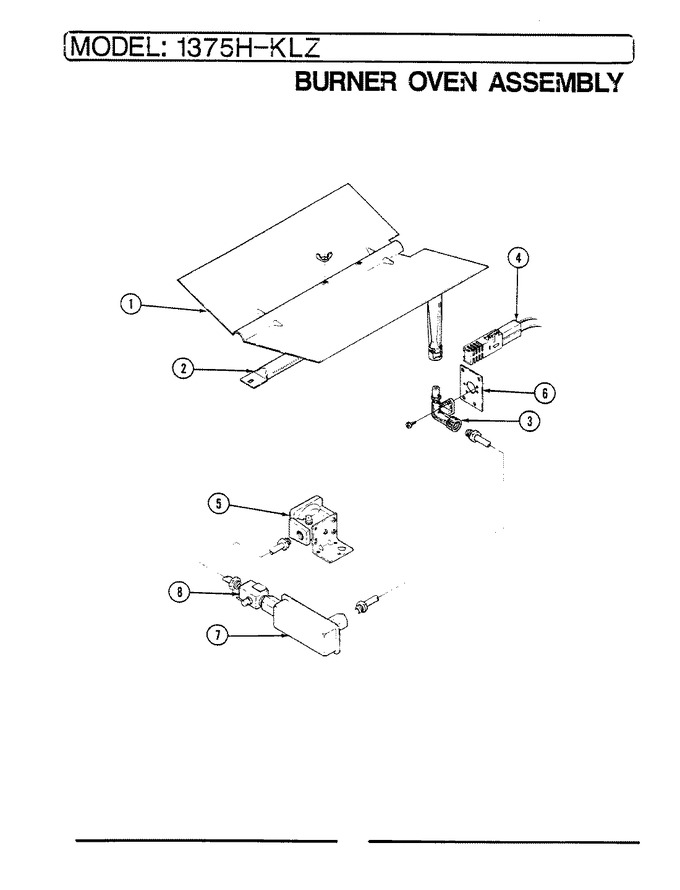

02 - Burner Assy.
03 - Control Panel
04 - Door (lower)
05 - Door (upper)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F101-45 | Baffle, Oven Burner | 1 |
|
- | ||||
| 2 | 7505P065-60 | Burner, Oven | 1 |
|
- | ||||
| 3 | 7507P008-60 | Fitting, Bake Bnr. | 1 |
|
- | ||||
| 4 | 12400035 | Igniter, Bake (Replaces: 7432P051-60) | 1 |
|
Immediately | $ 60.44 | |||
| 5 | 7510P014-60 | Regulator, Pressure | 1 |
|
- | ||||
| 6 | 3807F122-34 | Support | 1 |
|
- | ||||
| 7 | 7501P018-60 | Valve, Bake | 1 |
|
- | ||||
| 8 | 7502P002-60 | Valve, Shut Off | 1 |
|
- |
