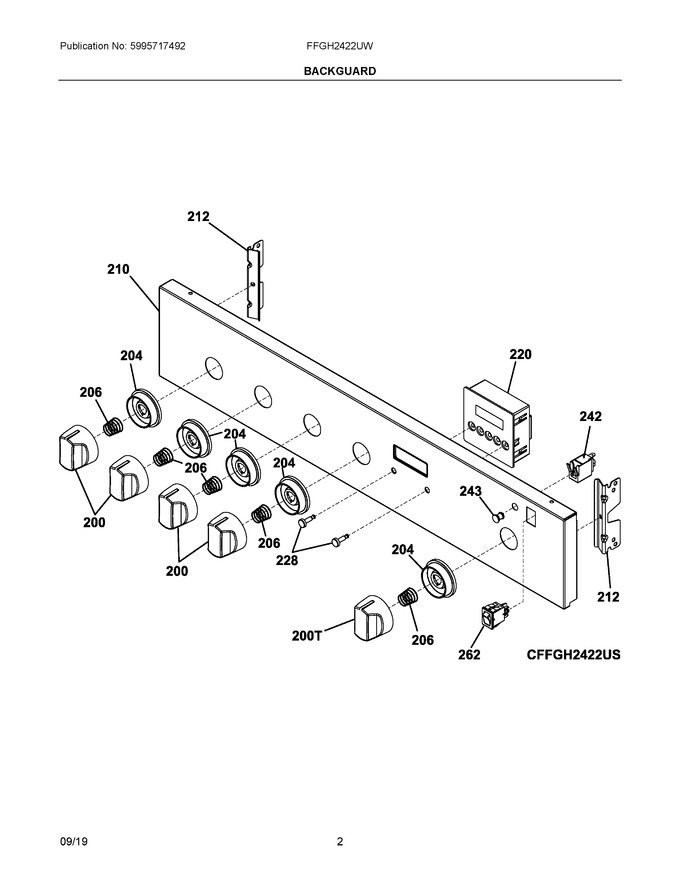

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 200 | A14176501 | Knob, Top Valve, White |
|
- | |||||
| 204 | A00196002 | Bezel, Knob Indicator, White |
|
- | |||||
| 206 | 354302903 | Spring, Knob |
|
- | |||||
| 210 | 342840439 | Panel, Control, White |
|
- | |||||
| 212 | 342610701 | Support, Control Panel |
|
- | |||||
| 220 | A02169804 | Pc Board, Assembly, User Interface |
|
- | |||||
| 228 | 342557313 | Knob, User Interface, White |
|
$ 11.42 | |||||
| 242 | 318369502 | Lamp, Indicator |
|
- | |||||
| 243 | 318044511 | Lens, Indicator Light |
|
Immediately | $ 25.66 | ||||
| 262 | A03134601 | Switch, Oven Lamp, White |
|
- | |||||
| 200T | A14177901 | Knob, Oven Control, White |
|
- |
