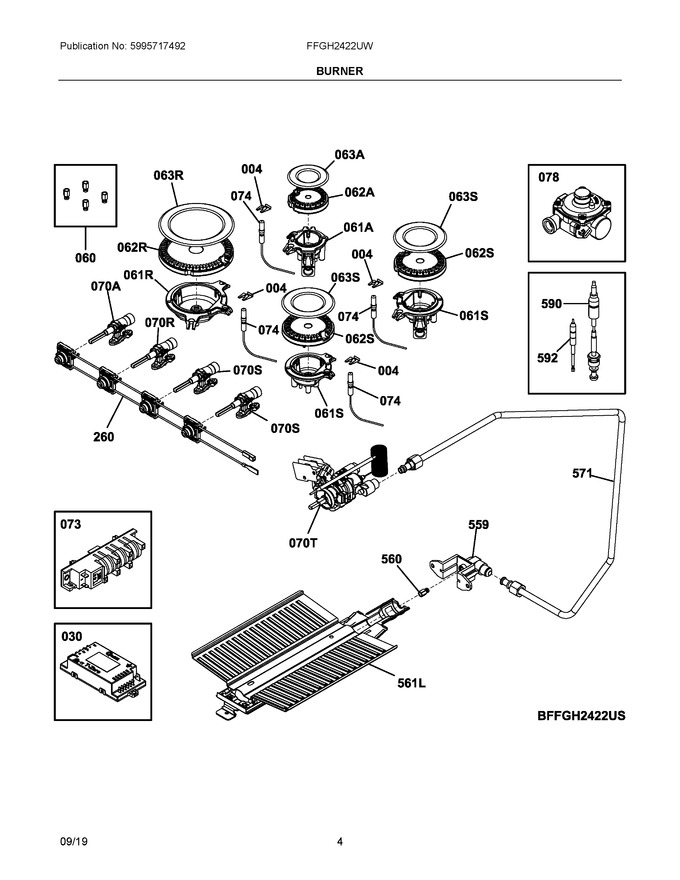

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | A03381701 | Clip, Spring, Ignitor/thmcple |
|
- | |||||
| 30 | 357233503 | Pc Board, Assembly, Time Zero |
|
- | |||||
| 60 | 405547395 | Orifice Set, Top Burner, (4 Pcs), Natural Gas |
|
- | |||||
| 73 | 808608804 | Spark Module |
|
Immediately | $ 76.06 | ||||
| 74 | A01330603 | Ignitor, Spark, 250mm Lead, Top Burner |
|
- | |||||
| 78 | A13097101 | Regulator, Gas Pressure |
|
$ 124.13 | |||||
| 260 | A13059201 | Switch Assembly, Ignitor Spark, W/harness |
|
- | |||||
| 559 | 342034201 | Support Nozzle, Oven Burner |
|
- | |||||
| 560 | 131002392 | Orifice, Oven Burner, Natural Gas |
|
- | |||||
| 571 | 342384801 | Tube, Supply, Oven Burner |
|
- | |||||
| 590 | 342907301 | Thermocouple, Oven Burner |
|
- | |||||
| 592 | 342906802 | Ignitor, Oven Burner |
|
- | |||||
| 560A | 354400003 | Orifice, Oven Burner, Lp Gas |
|
- | |||||
| 561L | A14238401 | Burner, Oven |
|
- | |||||
| 60A | 405549276 | Orifice Set, Top Burner, (4 Pcs), Lp Gas |
|
- | |||||
| 61A | A01483803 | Burner Body, Assembly, Small |
|
$ 54.60 | |||||
| 61R | A01484003 | Burner Body, Assembly, Large |
|
- | |||||
| 61S | A01483903 | Burner Body, Assembly, Medium |
|
- | |||||
| 62A | 354013801 | Top Burner, Crown, Small |
|
- | |||||
| 62R | 354013605 | Top Burner, Crown, Large |
|
- | |||||
| 62S | 354013701 | Top Burner, Crown, Medium |
|
- | |||||
| 63A | 354017006 | Cap, Top Burner, Small |
|
- | |||||
| 63R | 354017004 | Cap, Top Burner, Large |
|
- | |||||
| 63S | 354017005 | Cap, Top Burner, Medium |
|
- | |||||
| 70A | A15580201 | Valve, Top Burner, Small |
|
- | |||||
| 70R | A15580203 | Valve, Top Burner, Large |
|
- | |||||
| 70S | A15580202 | Valve, Top Burner, Medium |
|
- | |||||
| 70T | A13030601 | Thermostat, Oven Control, W/valve |
|
- | |||||
| 74A | A01330606 | Ignitor, Spark, 400mm Lead, Top Burner |
|
- | |||||
| 74B | A01330607 | Ignitor, Spark, 500mm Lead, Top Burner |
|
- | |||||
| NI | 354324402 | Bolt, 9x13mm T10 |
|
- | |||||
| NI | 5029426600 | Screw Pack, Burner Fixing, 9x13mm, (24 Pcs) |
|
- |
