01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

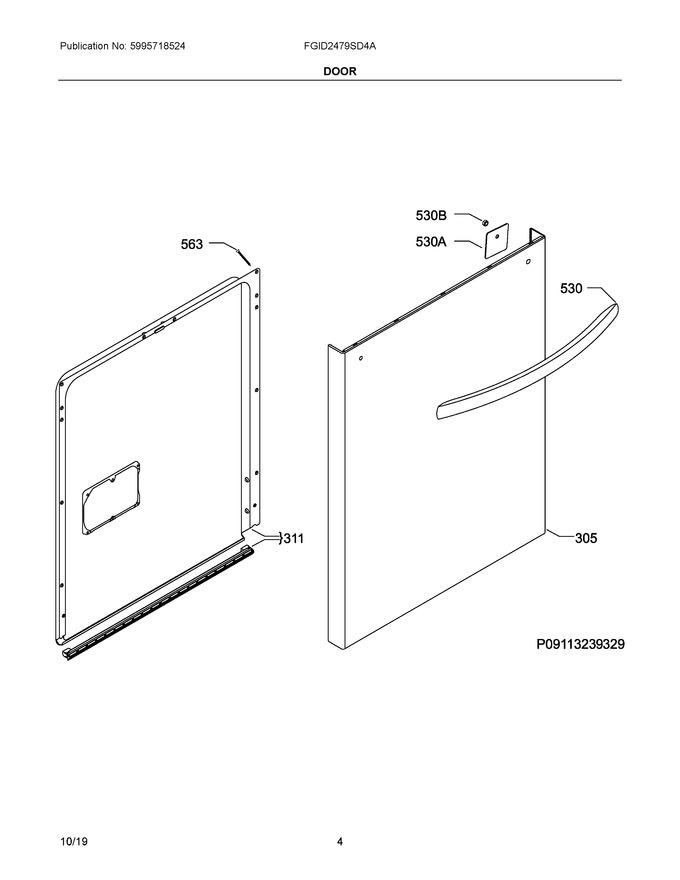

| 305 | 5304520301 | Door-complete |
|
$ 452.69 | |||||
| 311 | A00010702 | Liner, Door |
|
$ 397.30 | |||||
| 530 | 5304523303 | Handle, Black, 595mm |
|
$ 261.95 | |||||
| 563 | 405538278 | Screw Kit, Door, 3.5x13/19/40, (6/3/5 Pcs), Complete |
|
$ 16.34 | |||||
| 530A | 405530675 | Plate, Door Handle, (2) |
|
- | |||||
| 530B | 405530684 | Nut, Door Handle, (2) |
|
$ 52.88 | |||||
| NI | 405537692 | Screw, Door Handle, M4 X 10mm Ph |
|
$ 7.23 | |||||
| NI | 5304533456 | Screw, Kickplate, 3-5 X 9, (2) (Replaces: 405530674) |
|
$ 3.50 |
