01 - Cover Sheet
02 - Control Panel
03 - Door

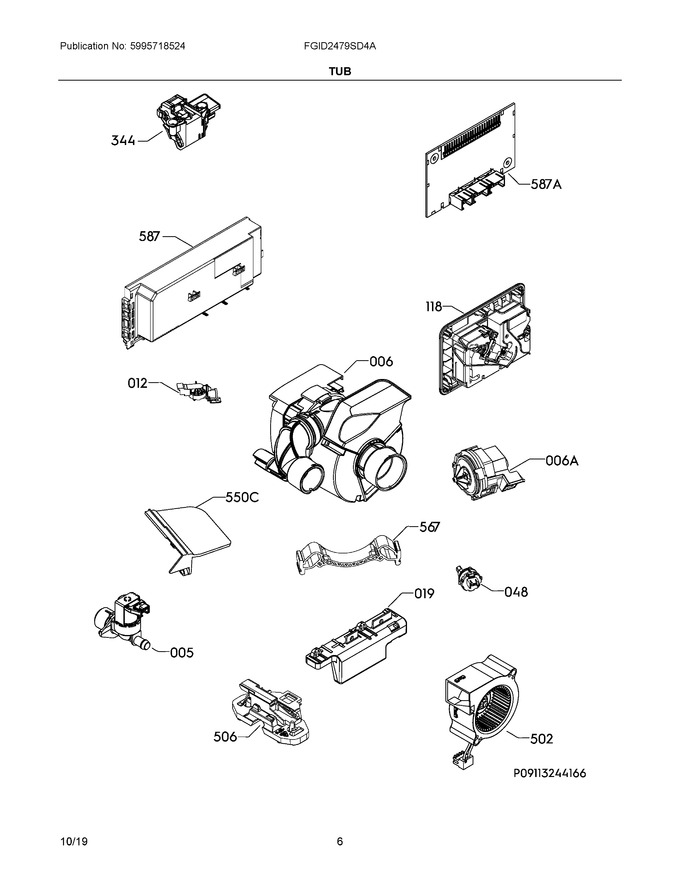

04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 807445905 | Valve, Fill (Replaces: 807445904) |
|
Immediately | $ 92.83 | ||||
| 6 | A10281701 | Pump Assembly, Circulation, Complete, W/heater |
|
Immediately | $ 274.28 | ||||
| 12 | A00055408 | Switch, Pressure |
|
Immediately | $ 83.50 | ||||
| 19 | 140006660140 | Lamp, Door Indicator, Blue/green (Replaces: A00666009) |
|
- | |||||
| 48 | A00040106 | Sensor, Turbidity (Replaces: A00040101) |
|
Immediately | $ 62.90 | ||||
| 118 | A00130341 | Dispenser, Detergent (Replaces: 5304522704) |
|
Immediately | $ 96.58 | ||||
| 344 | 111315040 | Door Lock, Assembly |
|
Immediately | $ 210.12 | ||||
| 502 | A05660402 | Blower Assembly, Radial |
|
Immediately | $ 142.47 | ||||
| 506 | A00056506 | Switch Assembly, Float (Replaces: A00056504) |
|
Immediately | $ 52.28 | ||||
| 567 | 117302400 | Support, Motor, Rubber |
|
- | |||||
| 587 | 117518720 | Control Assembly, Pb150 |
|
$ 367.97 | |||||
| 550C | 808089001 | Cover, Motor, Drip Protection |
|
- | |||||
| 587A | A06115601 | Board, Use Interface, Ui2491 |
|
Immediately | $ 122.18 | ||||
| 6A | A00044305 | Drain Pump, 60hz |
|
Immediately | $ 144.29 | ||||
| NI | 807555203 | Harness, Wiring, Pcb, Heater |
|
Immediately | $ 116.85 | ||||
| NI | A13840003 | Pump Harness |
|
- | |||||
| NI | A13841801 | Harness, Wiring, Pcb, Door |
|
Immediately | $ 86.03 |
