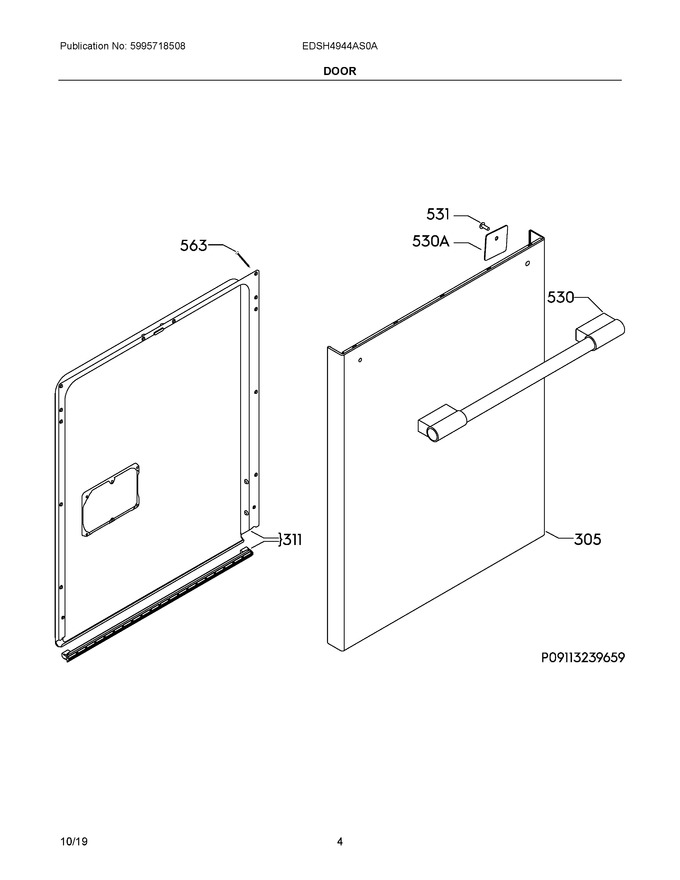

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
305	117496050		Door, Outer, Stainless				$ 456.60
311	A00010702		Liner, Door				$ 397.30
530	140169782020		Handle, Door, Stainless   (Replaces: A16978201)		Appelez-nous	-
531	154633601		Screw, Handle Mtg., (2)				$ 14.89
563	405538278		Screw Kit, Door, 3.5x13/19/40, (6/3/5 Pcs), Complete				$ 16.34
530A	405530675		Plate, Door Handle, (2)		Appelez-nous	-
NI	405537692		Screw, Door Handle, M4 X 10mm Ph				$ 7.23
NI	5304533456		Screw, Kickplate, 3-5 X 9, (2)   (Replaces: 405530674)				$ 3.50
