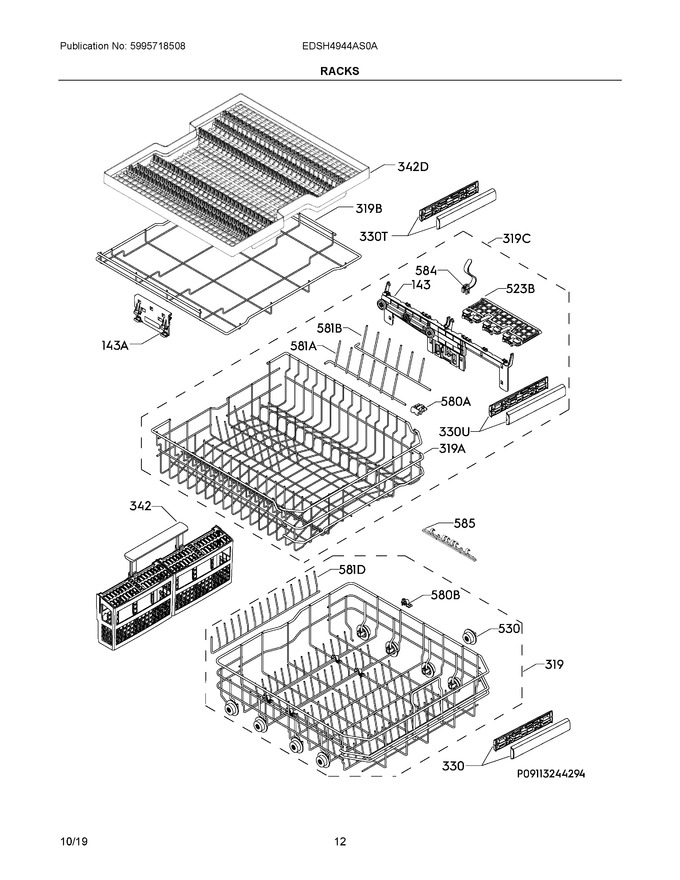

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
143	405541617		Adjustment Kit, Upper Rack, Lh & Rh				$ 135.77
319	A06629602		Rack Assembly, Lower, Silver				$ 244.49
330	405542591		Handle, Basket, Complete		Appelez-nous	-
342	A00173201		Cutlery Basket, Assembly, Grey				$ 172.60
530	405507213		Rack Roller, Kit, Lower				$ 45.46
584	A00924504		Clip, Cup				$ 33.42
585	A00209201		Holder, Accessory		Appelez-nous	-
143A	A00008104		Holder, Basket, Top   (Replaces: 405541622)			Immediately	$ 29.69
319A	A00239833		Rack Assembly, Upper, Silver				$ 318.50
319B	A00004305		Rack, Top, Silver				$ 363.30
319C	117492540		Rack Assembly, Complete, Silver, Upper, W/adjustments				$ 399.97
330T	405542593		Handle, Basket, Top		Appelez-nous	-
330U	405542592		Handle, Basket, Upper		Appelez-nous	-
342D	A02899201		Basket, Cuttlery, Grey, Shelf				$ 160.77
523B	808124101		Shelf, Cup, Blue				$ 103.38
580A	A00141702		Fixing Clamp, Partition, Upper				$ 74.99
580B	807282902		Clip, Partition, Lower Rack				$ 65.92
581A	A00237001		Partition, Upper Rack, Lh				$ 160.61
581B	807077101		Partition, Upper Rack, Rh				$ 156.64
581D	A06542001		Partition, Lower Rack				$ 102.95
