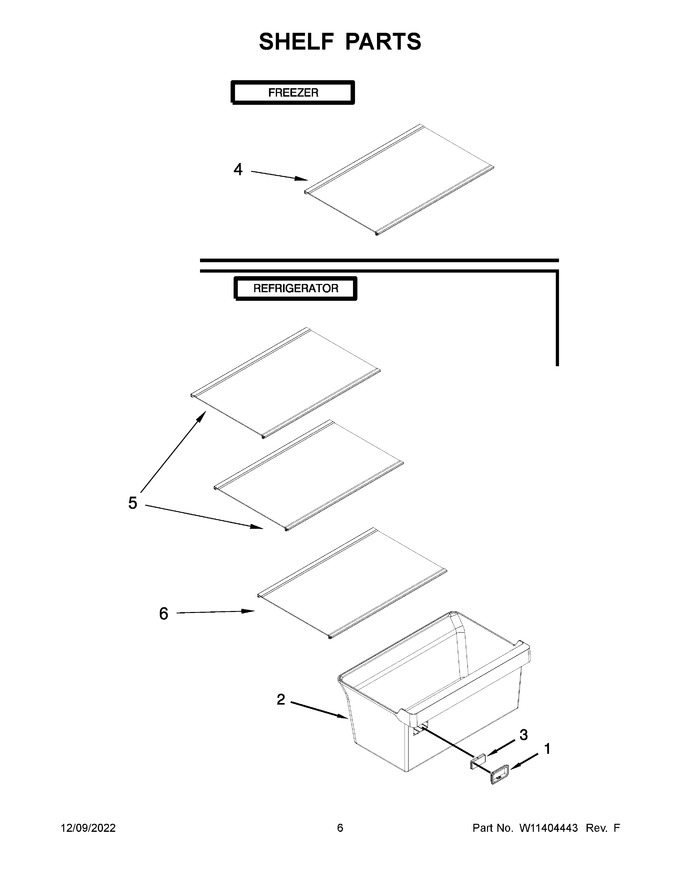

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10435530 | Frame, Humidity Control |
|
$ 13.96 | |||||
| 2 | W11388923 | Assembly, Crisper (Replaces: W11295868) |
|
$ 200.66 | |||||
| 3 | W10431229 | Control, Humidity |
|
$ 13.81 | |||||
| 4 | W11369034 | Shelf, Glass (Replaces: W11248340) |
|
$ 188.82 | |||||
| 5 | W11369033 | Shelf, Glass (Replaces: W11248335) |
|
$ 195.80 | |||||
| 6 | W11388921 | Shelf, Bottom Glass (Replaces: W11367385) |
|
- |
