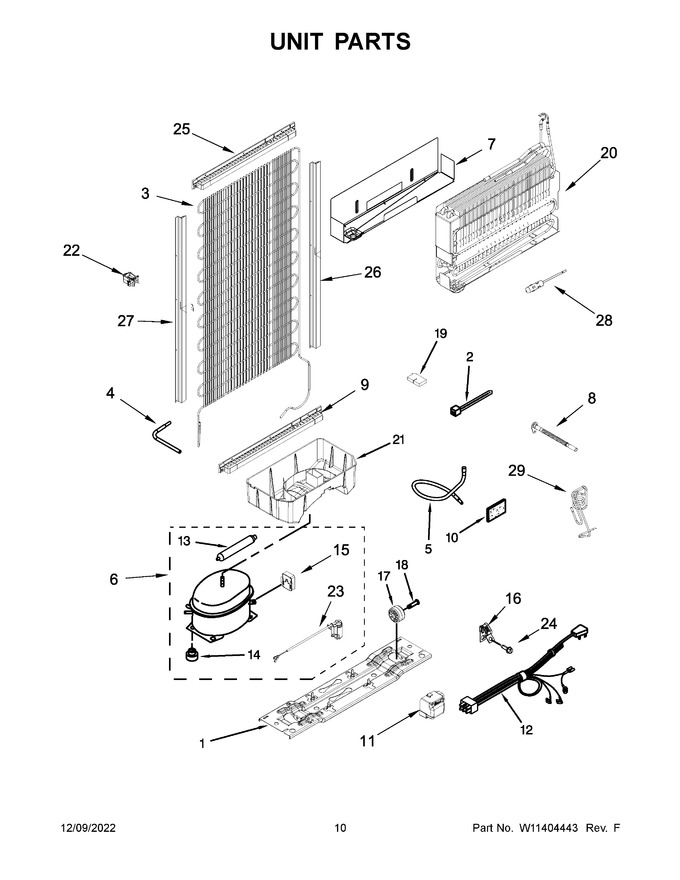

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10378704 | Plate, Compressor Support |
|
$ 57.47 | |||||
| 2 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 3 | W11368894 | Condenser (also Order The Following Lokring Parts) (Replaces: W11246374) |
|
$ 255.98 | |||||
| 4 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 26.11 | |||||
| 5 | W11403094 | Suction Tube, Static (Replaces: W11383830) |
|
$ 55.21 | |||||
| 6 | W11370574 | Compressor (also Order The Following Lokring Parts) (Replaces: W11225065) |
|
Immediately | $ 373.89 | ||||
| 7 | W11179127 | Heat Sheild |
|
$ 37.04 | |||||
| 8 | W11547140 | Extension, Drain Tube (Replaces: W11488945) |
|
$ 89.53 | |||||
| 9 | W11264207 | Condenser, Bottom Protection |
|
$ 74.31 | |||||
| 10 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 11 | W11342284 | Cover, Terminal Board |
|
$ 88.20 | |||||
| 12 | W11248029 | Assembly, Power Cord |
|
$ 148.56 | |||||
| 13 | W11490399 | Drier (also Order The Following Lokring Parts) (Replaces: W11107829) |
|
Immediately | $ 26.01 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 6.47 | ||||
| 15 | W11643623 | Device, Start (Replaces: W11387715) |
|
$ 65.67 | |||||
| 16 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 18.96 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 19 | W10261299 | Wedge, Evaporator |
|
- | |||||
| 20 | W11368877 | Evaporator Assembly (with Defrost Heater) (also Order The Following Lokring Parts) (Replaces: W11186306) |
|
Immediately | $ 293.44 | ||||
| 21 | W11559685 | Tray, Water (Replaces: W11461578) |
|
Immediately | $ 85.67 | ||||
| 22 | WP326020544 | Support, Condenser (Replaces: 326020544) |
|
$ 9.31 | |||||
| 23 | W11652060 | Assembly, Capacitor (Replaces: W11358319) |
|
Immediately | $ 80.89 | ||||
| 24 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 25 | W11264206 | Condenser, Top Protection |
|
$ 74.24 | |||||
| 26 | W11377937 | Condenser, Side Protection (right) |
|
Immediately | $ 75.51 | ||||
| 27 | W11377938 | Condenser Side Protection (left) |
|
$ 72.95 | |||||
| 28 | NP | Rail, Center (not Serviced) |
|
- | |||||
| 29 | W11528684 | Coil, Discharge (Replaces: W11255016) |
|
$ 38.66 | |||||
| 13A | W11506623 | 5/5-nk-ms-00 (inlet To Drier) (Replaces: W10896710) |
|
Immediately | $ 18.86 | ||||
| 13B | W11504448 | 5/1.8-nr-al-00 (outlet To Drier) (Replaces: W11400723) |
|
Immediately | $ 41.64 | ||||
| 20A | W11504449 | 4/2-nr Al-00 (capillary To Evaporator) (Replaces: W11400737) |
|
Immediately | $ 32.09 | ||||
| 20B | W11225184 | 200-mm- Al-00 (aluminum Suction Line To Evaporator) (Replaces: W11187707) |
|
Immediately | $ 61.09 | ||||
| 3A | W11504418 | 8/7-nr-ms-00 (compressor To Condenser) (Replaces: W11400726) |
|
Immediately | $ 22.73 | ||||
| 6A | W11504419 | 8/7- Nr-al-00 (suction Tube To Compressor) (Replaces: W11400725) |
|
Immediately | $ 30.16 | ||||
| 6B | W11504420 | 8/6-nr-ms-00 (suction Tube To Compressor) (Replaces: W10895723) |
|
Immediately | $ 22.19 | ||||
| NI | NP | Rail, Center (not Serviced) |
|
- |
