01 - Cover Sheet
02 - Door

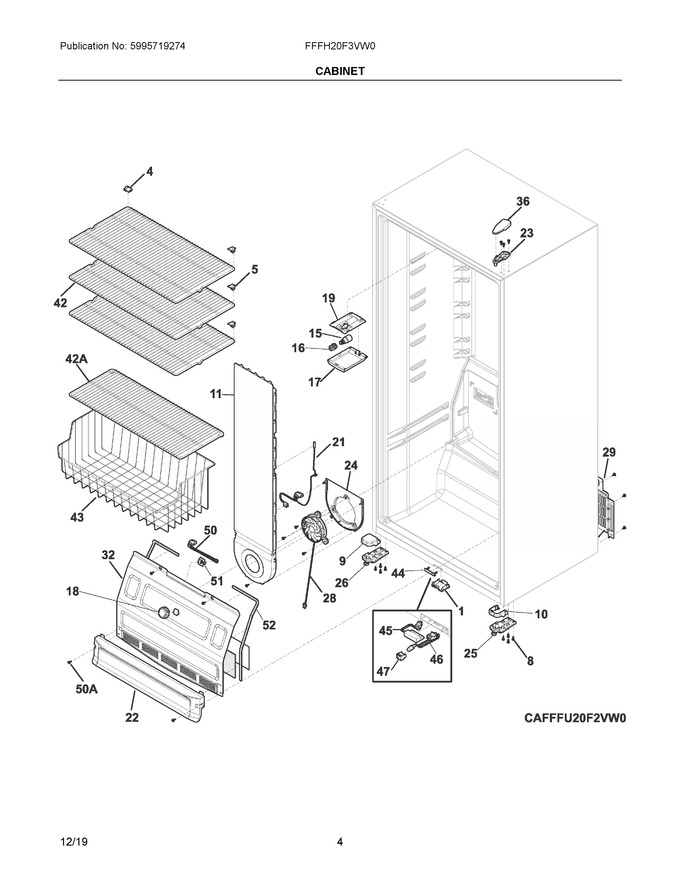

03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304523792 | Cover, Reed Switch |
|
Immediately | $ 7.96 | ||||
| 4 | 5304522258 | Clip, Wire Shelf, Lh |
|
Immediately | $ 9.14 | ||||
| 5 | 5304522259 | Clip, Wire Shelf, Rh |
|
Immediately | $ 9.14 | ||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.08 | ||||
| 9 | 5304519777 | Cover, Hinge, White, Lower, Non Hinged |
|
$ 5.07 | |||||
| 10 | 5304522244 | Cover, Hinge Side, White, Lower |
|
$ 4.47 | |||||
| 11 | 5303918891 | Air Tower (Replaces: 5304523725) |
|
Immediately | $ 121.98 | ||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 40.19 | ||||
| 16 | 5304522315 | Socket, Led Light |
|
Immediately | $ 10.62 | ||||
| 17 | 5304523778 | Cover, Lens |
|
Immediately | $ 14.15 | ||||
| 18 | 5304523758 | Knob, Temp Control |
|
Immediately | $ 7.96 | ||||
| 19 | 5304523777 | Mount, Socket |
|
$ 7.96 | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 38.56 | ||||
| 22 | 5304523753 | Diverter, Air |
|
$ 47.25 | |||||
| 23 | 5304523689 | Hinge, Upper |
|
$ 11.57 | |||||
| 24 | 5304523722 | Mount-fan, Evaporator |
|
Immediately | $ 18.79 | ||||
| 25 | 5304529045 | Hinge-bottom, Assembly, Rh (Replaces: 5304523746) |
|
$ 45.55 | |||||
| 26 | 5304523747 | Hinge-bottom, Assembly, Lh |
|
$ 41.21 | |||||
| 28 | 5304523741 | Motor-fan, Evaporator |
|
Immediately | $ 139.54 | ||||
| 29 | 5304523769 | Cover, Access |
|
- | |||||
| 32 | 5304532168 | Cover, Evaporator (Replaces: 5304523726) |
|
$ 79.38 | |||||
| 36 | 5304530010 | Cover, Upper Hinge, White (Replaces: 5304519784) |
|
Immediately | $ 6.95 | ||||
| 42 | 5304537120 | Shelf, Sliding, (3) (Replaces: 5304523692) |
|
Immediately | $ 79.73 | ||||
| 43 | 5304537472 | Basket, Wire, Lower (Replaces: 5304523751) |
|
Immediately | $ 36.47 | ||||
| 44 | 5304523785 | Cover, Light Guide |
|
Immediately | $ 8.94 | ||||
| 45 | 5304527992 | Switch, Reed (Replaces: 242326001) |
|
Immediately | $ 81.69 | ||||
| 46 | 5304523827 | Led |
|
- | |||||
| 47 | 5304523828 | Socket |
|
- | |||||
| 50 | 5304523789 | Harness, Potentionmeter |
|
Immediately | $ 22.29 | ||||
| 51 | 5304523768 | Clip, Potentiometer |
|
$ 7.23 | |||||
| 52 | 5304528970 | Seal, Foam (Replaces: 5304523723) |
|
$ 5.07 | |||||
| 42A | 5304537123 | Shelf, Wire, Lower (Replaces: 5304523712) |
|
Immediately | $ 73.18 | ||||
| 50A | 5304523738 | Screw-hex Wash Hd., M4.2 X 16 |
|
$ 6.51 | |||||
| NI | 5304523801 | Screw-hex Wash., Hd M4 X 10 |
|
- | |||||
| NI | 242039703 | Screw, 10-16 Type Ab |
|
- | |||||
| NIA | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 |
