SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

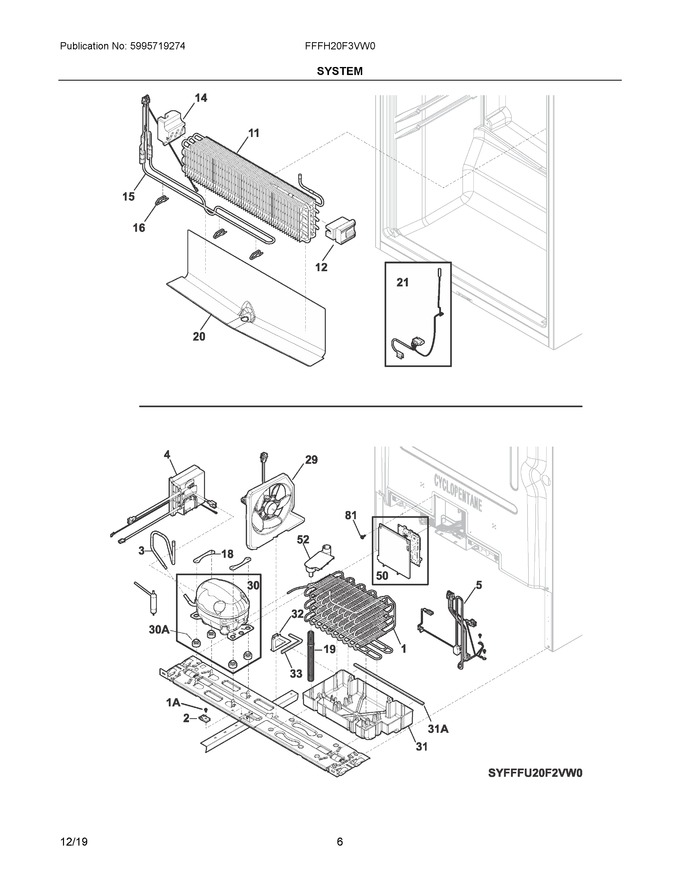

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533258		Condenser-dynamic   (Replaces: 5304523710)				$ 138.22
2	5304454459		Clamp-cable		Appelez-nous	-
3	5304522111		Tube, Suction Jumper			Immediately	$ 30.34
4	5304523779		Inverter, Flexdrive 2.2			Immediately	$ 244.00
5	5304532290		Harness-mach.compt Vsc   (Replaces: 5304523761)			Immediately	$ 61.27
11	5304523830		Coil			Immediately	$ 143.67
12	5304523831		Support, Evaporator, Rh				$ 3.62
14	5304523832		Support, Evaporator			Immediately	$ 3.62
15	5304523833		Defrost Heater			Immediately	$ 81.99
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
18	5304519812		Clamp Compressor		Appelez-nous	-
19	5304523706		Tube-drain Corrugate		Appelez-nous	-
20	5304524755		Trough-drain   (Replaces: 5304523720)				$ 51.34
21	5304523788		Harness Assembly, Temp/defrost, W/thermostats			Immediately	$ 38.56
29	5304519734		Fan Assembly, Condenser, W/shroud-foam			Immediately	$ 156.99
30	5304532529		Compressor, Tkd91e   (Replaces: 5304523780)			Immediately	$ 477.06
31	5304523709		Pan-drain				$ 35.42
32	5304519745		Baffle, Drain Pan, Air Block				$ 7.80
33	5304519751		Seal, Foam, Air Block				$ 3.08
50	5304529281		Mainboard, W/housing, Erf300   (Replaces: 5304523745)			Immediately	$ 172.04
51	5304523802		Assy-drain Jumper W/vac Relief		Appelez-nous	-
52	5304523694		Baffle Divider High Side Uf20				$ 7.96
81	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.03
1A	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
30A	5304523829		Grommet				$ 10.85
31A	5304519744		Tape-foam		Appelez-nous	-
NI	5304523801		Screw-hex Wash., Hd M4 X 10		Appelez-nous	-
NI	240569202		Screw, 8-18 X .500				$ 2.12
NI	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.03

    View Diagram in Separate Window       Print Part List
