SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Cabinet/top/door

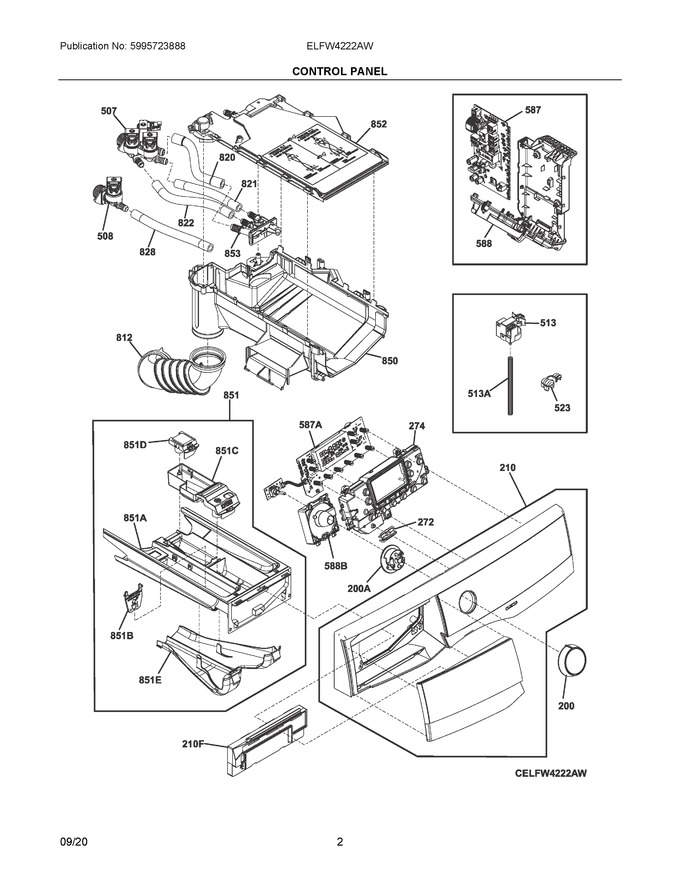

04 - Motor/tub/pump


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
200	A14487601		Knob, Program Select, Chrome Pltd, Outer				$ 99.77
210	A17820305		Control Panel, Assembly, White/black, W/drawer Handle				$ 276.45
272	A06036609		Button, Rectangular, White				$ 10.13
274	A06025111		Diffuser, Support, Luminous Diode				$ 49.98
507	132518842		Valve, Electric, Triple Solenoid			Immediately	$ 124.65
508	132744701		Valve, Electric, Single Solenoid			Immediately	$ 80.51
513	379221604		Switch, Pressure   (Replaces: 132819501)				$ 48.34
523	A02006501		Duct, Power Cable, Ul		Appelez-nous	-
587	5304523846		Pc Board Assembly, Main, Configured			Immediately	$ 346.19
588	807881002		Housing Assembly, Main Board				$ 44.10
812	405537913		Hose Kit, Detergent Fill, W/clamps				$ 37.59
820	405536798		Tube Kit, Electric Valve, Ev/wd G33 D=12		Appelez-nous	-
821	405536797		Tube Kit, Electric Valve, D=10mm/l=152mm				$ 29.65
822	405536796		Tube Kit, Electric Valve, D=10mm/l=125mm				$ 27.64
828	132502480		Tube, Electric Valve, D=10 L=165, Container Cup		Appelez-nous	-
850	132640843		Dispenser, Detergent				$ 234.70
851	405549875		Drawer Assembly, Complete				$ 104.69
852	132507112		Water Distributor, Assembly, Hot				$ 112.31
853	132502111		Water Distributor, Back, Pipe Union				$ 177.08
200A	A06078806		Knob, Program Select, Black, Inner				$ 21.69
210F	A17820701		Support, Drawer Handle			Immediately	$ 46.13
513A	132642371		Tube, Pressure Switch   (Replaces: 132642330)				$ 43.67
587A	405550732		Pc Board Assembly, User Interface, W/prgram Select			Immediately	$ 334.76
588B	A04035706		Housing, Program Select				$ 24.88
851A	132507511		Drawer, Detergent				$ 253.87
851B	132767801		Flap, Partition, Detergent Drwr				$ 7.23
851C	809169902		Syphon, Drawer, Additives		Appelez-nous	-
851D	809169802		Syphon, Drawer, Liquid Detergnt		Appelez-nous	-
851E	132507601		Conveyor, Bottom, Dispenser Drwr				$ 128.68
NI	140012084038		Power Cord, Service Cable   (Replaces: A01208403)				$ 48.33
NI	A01245501		Wiring Harness, Main Board, To Heat Element				$ 217.58
NI	A01245603		Wiring Harness, Main Board, To Elec. Valve		Appelez-nous	-
NI	A01245801		Wiring Harness, Pressure Switch, Temp Probe		Appelez-nous	-
NI	A01246302		Wiring Harness, Main Board, To Door Intrlok		Appelez-nous	-
NI	A13141001		Wiring Harness, Main Board, 810mm, To Elec. Valve		Appelez-nous	-
NI	A13141201		Wiring Harness, Main Board, To Ui Board		Appelez-nous	-
NI	A13152301		Wiring Harness, Main Board, To Hot Valve		Appelez-nous	-
NI	105117480		Clamp, Hose		Appelez-nous	-
NI	132315900		Clamp, Hose, D 20, 5		Appelez-nous	-
NI	132315920		Clamp, Hose, D 52.5		Appelez-nous	-
NI	132315940		Clamp, Hose, D40		Appelez-nous	-
NI	132315970		Clamp, Hose, D65, 5		Appelez-nous	-
NI	533122128		Clamp, Hose, 21.5-22.6mm		Appelez-nous	-
