SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

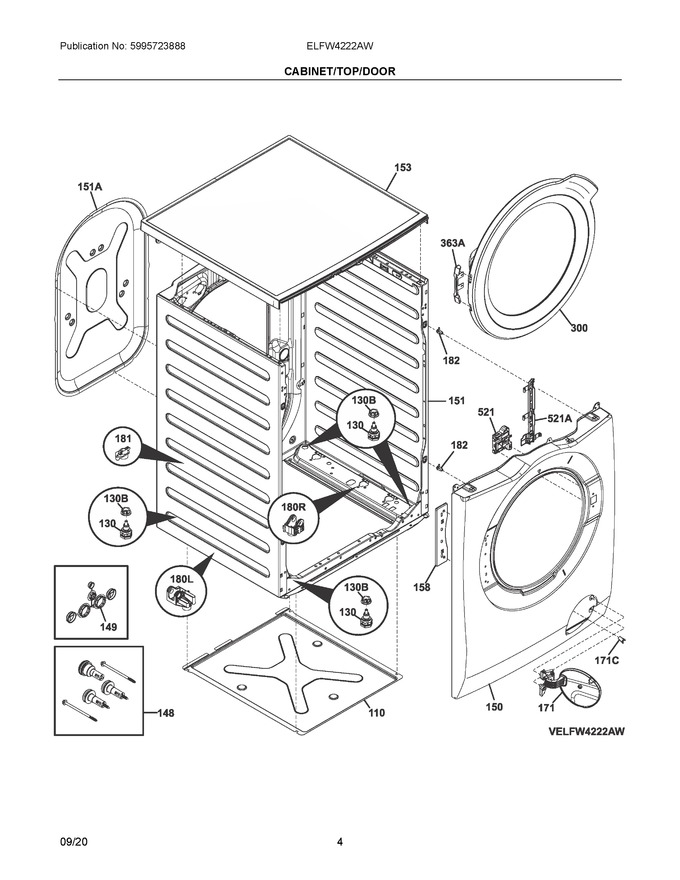

03 - Cabinet/top/door


04 - Motor/tub/pump


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
110	A00889001		Base, Aqua Control		Appelez-nous	-
130	132500760		Leg, Leveling, Screw				$ 101.93
148	405543872		Shipping Kit, Transit Straps, W/screws				$ 112.78
149	132503902		Cap, Holes, Rear Panel		Appelez-nous	-
150	5304536445		Front Panel, Cabinet, White   (Replaces: A01075603)			Immediately	$ 162.13
151	132774390		Panel, Cabinet Back, White				$ 225.26
153	132760446		Work Top, Assembly, White				$ 242.42
158	A00521302		Reinforcement, Hinge		Appelez-nous	-
171	A03748617		Door Assembly, Diaphragm, Pump Body, W/hinge				$ 32.54
181	132559902		Cap, Support, Cushion		Appelez-nous	-
182	132476800		Pin, Front Panel, Alignment/catch				$ 27.64
300	A15514113		Door Assembly, Welded, Silver			Immediately	$ 344.84
521	808455304		Lock, Door, 40n, 120v, 60hz			Immediately	$ 103.30
130B	110877100		Bushing, Leveling Leg				$ 107.89
151A	132504042		Panel, Service Access				$ 109.34
171C	A03653601		Catch Assembly, Diaphragm Door, Pump Body		Appelez-nous	-
180L	132764600		Bracket, Shock Absorber, Lh				$ 46.64
180R	132764700		Bracket, Shock Absorber, Rh				$ 47.09
363A	A13548802		Cover, Door Hinge, Grey			Immediately	$ 7.96
521A	807756001		Cover, Door Lock, Latch				$ 110.35
NI	533115822		Clamp, Elec Valve, Hose		Appelez-nous	-
NI	533118220		Clamp, 18.2		Appelez-nous	-
