SELECT A DIAGRAM

01 - Cover


03 - Control Panel

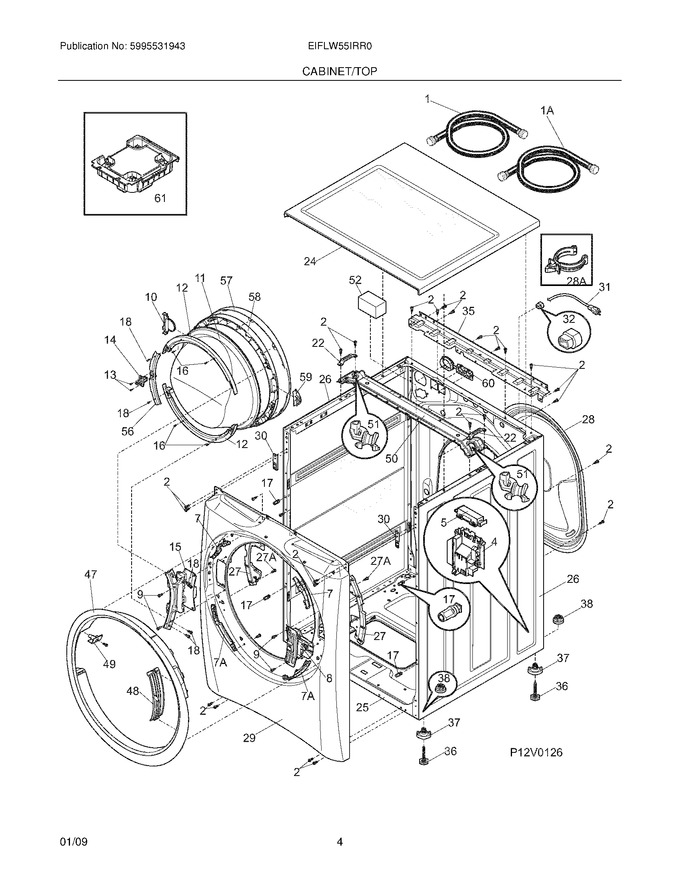

05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304518094		Asmy-hose Inlet (cold),water Inlet   (Replaces: 7137015502)				$ 25.52
2	131168200		Screw,pan Head ,8-18b X 0.31   (Replaces: 7131168200)			Immediately	$ 14.18
5	7134649700		Cover,motor Control ,housing		Appelez-nous	-
7	7137046800		Bracket,trim Ring Mtg ,upper		Appelez-nous	-
9	7131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
10	7134933900		Assembly,indicator ,complete		Appelez-nous	-
11	5304505107		Glass,door   (Replaces: 7134936100)				$ 225.55
12	7134696901		Frame,inner Door		Appelez-nous	-
13	7131302901		Screw,10-16 X 0.750		Appelez-nous	-
14	7134937300		Assembly,strike ,complete		Appelez-nous	-
15	7137107500		Hinge,door ,washer		Appelez-nous	-
16	7134788000		Screw,no.8 X1.18 ,pan Hd		Appelez-nous	-
17	7134638700		Clip,assembly		Appelez-nous	-
18	7134790400		Screw,no.10x1.25 ,oval Head		Appelez-nous	-
22	7134648500		Bracket-spring,retainer		Appelez-nous	-
24	7134638530		Panel,work Top ,red		Appelez-nous	-
25	7134646000		Base		Appelez-nous	-
26	7134645930		Panel,side ,red ,left Or Right		Appelez-nous	-
27	7134879800		Protector,door Lock ,harness		Appelez-nous	-
28	7134646200		Back Panel Service,service		Appelez-nous	-
29	7134618730		Panel,cabinet Front ,red		Appelez-nous	-
30	7134858010		Bracket,front Panel ,rh		Appelez-nous	-
30	7134858000		Bracket,front Panel ,lh		Appelez-nous	-
32	75303209428		Bushing,power Cord		Appelez-nous	-
35	7134713100		Bracket,top Panel Mtg. ,rear		Appelez-nous	-
36	134639100		Leveling Leg,screw   (Replaces: 7134639100)			Immediately	$ 31.19
37	7134617600		Bushing,leveling Leg		Appelez-nous	-
38	7134639200		Nut,leveling Leg ,bushing		Appelez-nous	-
47	5304505715		Trim,front Panel   (Replaces: 7134618800)				$ 302.18
48	7134967200		Cover,trim Ring ,washer		Appelez-nous	-
49	134651200		Retainer,trim Ring   (Replaces: 7134651200)				$ 161.22
50	7134645600		Bracket,tub Suspension		Appelez-nous	-
51	7134655800		Protector,tub Suspension ,spring Hook ,(2)		Appelez-nous	-
52	7131931202		Dampener,vibration ,foam		Appelez-nous	-
56	134925001		Cover,strike   (Replaces: 7134925000)				$ 58.73
57	7134932900		Lens,decorated Door		Appelez-nous	-
58	7134697200		Panel,outer Door		Appelez-nous	-
59	7134931500		Cover,indicator Hole		Appelez-nous	-
60	7134372000		Grommet,dispenser ,back Panel		Appelez-nous	-
61	7134652000		Damper,mass Vibration		Appelez-nous	-
1A	5304518094		Asmy-hose Inlet (hot),water Inlet   (Replaces: 7137015503)				$ 25.52
27A	7134790600		Screw,no.10-24 X 1.0`` ,pan Hd		Appelez-nous	-
28A	7134649400		Fastener,hose Clip ,external		Appelez-nous	-
7A	7137046700		Bracket,trim Ring ,mounting		Appelez-nous	-
F31	7137011400		Power Cord,electric Svce ,120 16a		Appelez-nous	-
F4	7134618200		Control Board,motor		Appelez-nous	-
F8	134629900		Door Lock   (Replaces: 7134629900)				$ 168.44
NI	7134876500		Clip,hose,drain ,rear-panel		Appelez-nous	-
NI	7134994500		Cover,door Lock Plug		Appelez-nous	-
NI	7134868900		Harness,door Lock ,front Panel		Appelez-nous	-
NI	7134178901		Screw,8-18ab X 0.455		Appelez-nous	-
NI	7131202300		Screw,10-16ab X 0.625		Appelez-nous	-
NI	7134629400		Screw,mc5x8.5 Torx ,cabinet Mtg		Appelez-nous	-
NI	7134601900		Screw,flat Head ,m5 X .8 X 17.5		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
