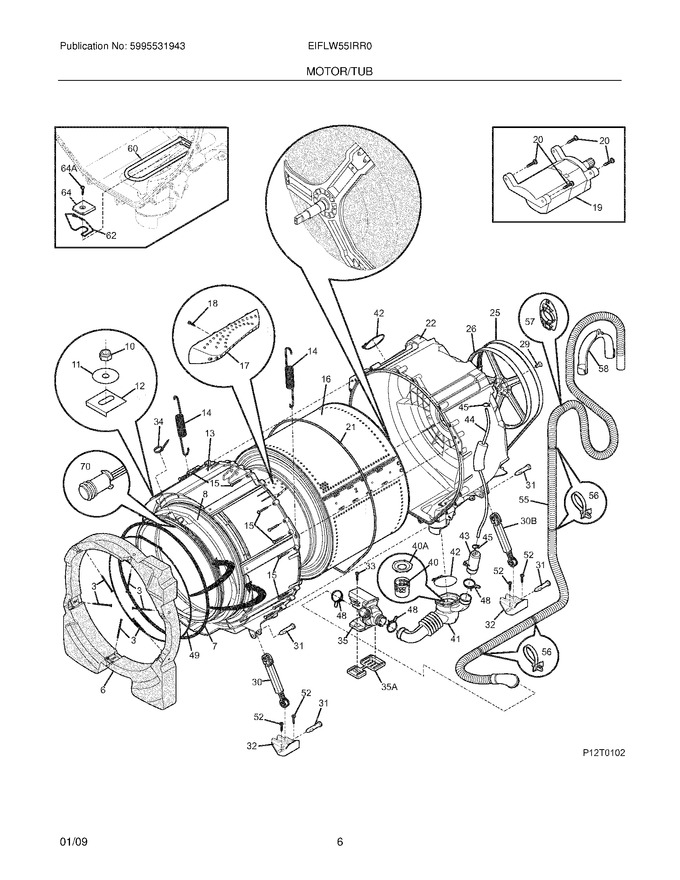

07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	7131793304		Bolt-carriage,1/4-20 Unrc 2a		Appelez-nous	-
6	7137007300		Counterweight,front ,one Piece		Appelez-nous	-
7	7134616200		Spring,boot Retainer		Appelez-nous	-
10	7131304700		Nut,hex ,1/4-20 Unc-2b ,(2)		Appelez-nous	-
11	7131276900		Washer,bellville ,spring Steel		Appelez-nous	-
12	7134430600		Plate,counterweight		Appelez-nous	-
13	134643000		Shell,outer Tub ,front   (Replaces: 7134643000)				$ 269.33
15	7131303900		Screw,hex Washer Head ,1/4-10a X 2.165		Appelez-nous	-
16	7137045000		Drum Assy,spin Basket		Appelez-nous	-
17	134657000		Vane And Nozzle,drum   (Replaces: 7134657000)				$ 72.30
18	7131302800		Screw,10-16ab X 0.375		Appelez-nous	-
20	7131303500		Screw,12-14ab X 1.50 ,motor Mtg.		Appelez-nous	-
21	7134361900		O-ring,tub		Appelez-nous	-
22	7134642100		Shell,outer Tub ,rear ,with Bearing		Appelez-nous	-
29	7134408400		Screw,10.9 Class ,m10 X 25 Mm		Appelez-nous	-
30	7137040900		Shock Absorber,(hp) And Clips ,front		Appelez-nous	-
31	7131268300		Pin,shock Mtg.		Appelez-nous	-
32	7134363200		Bracket,shock Mtg.		Appelez-nous	-
33	7134637200		Screw,no.10-16x1.125 ,hexwasher Head		Appelez-nous	-
34	75303321209		Cable Tie,5.60 Inch		Appelez-nous	-
35	137240800		Pump,drain   (Replaces: 7137038700)			Immediately	$ 113.44
40	7134640200		Filter,pump		Appelez-nous	-
41	7134639900		Hose,coin Trap ,tub-to-pump		Appelez-nous	-
42	7134737300		Clamp,hose		Appelez-nous	-
43	7134636800		Chamber,air		Appelez-nous	-
44	7134369900		Hose,air Pressure		Appelez-nous	-
45	7131306202		Clamp,hose		Appelez-nous	-
48	7131306234		Clamp,hose ,wire		Appelez-nous	-
49	7134616300		Clamp,bellows ,spring Held		Appelez-nous	-
52	7131202300		Screw,10-16ab X 0.625		Appelez-nous	-
56	7137003500		Cable Tie,push Mount		Appelez-nous	-
57	7134641100		Bracket,drain Hose Mtg ,rear		Appelez-nous	-
58	7134440700		Hanger,drain Hose		Appelez-nous	-
62	7134642300		Support,heating Element		Appelez-nous	-
64	7134644600		Support,heating Element		Appelez-nous	-
30B	7137041000		Shock Absorber,(ss) And Clips ,back		Appelez-nous	-
35A	7134618100		Pad,vibration ,pump Motor		Appelez-nous	-
40A	7134640300		Cover,filter		Appelez-nous	-
60No.	5304534256		Element Assembly,heating (1000w)   (Replaces: 134552301)				$ 90.70
64A	7134638100		Screw,no.8-18 X .50 ,truss Head		Appelez-nous	-
F14	7134643500		Spring Asmy,suspension		Appelez-nous	-
F19	7134638900		Motor,induction ,controled		Appelez-nous	-
F25	7134616700		Belt,drive ,poly-v		Appelez-nous	-
F26	7134362600		Pulley,drum Drive ,large ,rear		Appelez-nous	-
F55	137003400		Hose,drain-one Piece   (Replaces: 7137003400)				$ 143.87
F70	7134635500		Lamp Assy,led ,20 W ,complete Asmy		Appelez-nous	-
F8	134616100		Bellows Kit,boot ,w/light Hole   (Replaces: 7134616100)			Immediately	$ 158.66
NI	7137110800		Cushion,shock Bracket ,left Rear		Appelez-nous	-
NI	7134618500		Harness,wiring ,motor		Appelez-nous	-
