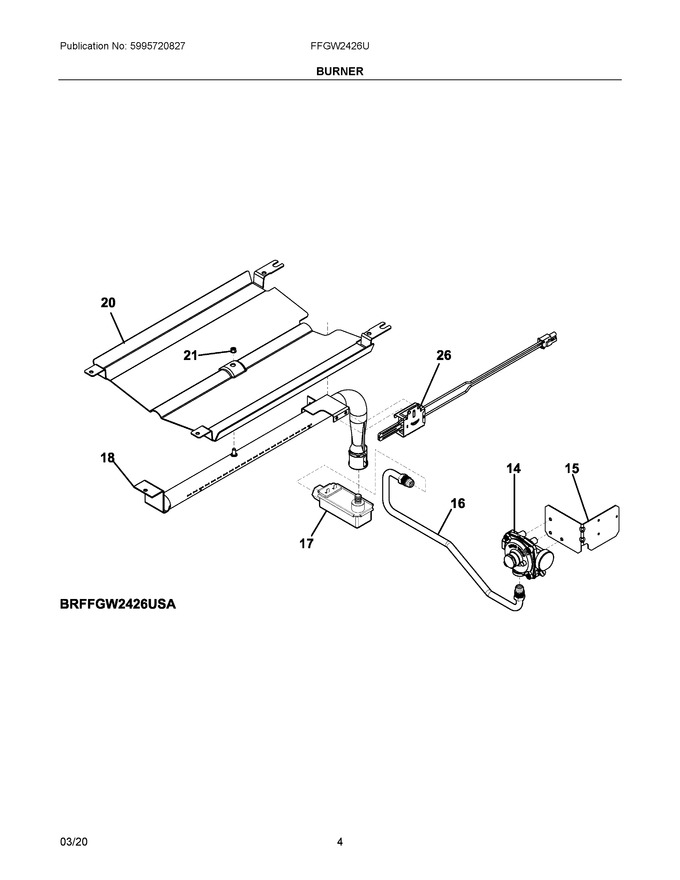

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	A13097101		Regulator, Pressure, Verticle Mtg., Bypass   (Replaces: 5304516783)				$ 124.13
15	5304498069		Bracket, Regulator Mtg.		Appelez-nous	-
16	5304514378		Tube, Regulator, To Valve		Appelez-nous	-
17	807192701		Valve, Safety		Appelez-nous	-
18	5304502520		Burner, Bake				$ 173.66
20	139076601		Baffle, Oven Burner		Appelez-nous	-
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
26	139013700		Ignitor, Burner, Bake			Immediately	$ 171.52
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304504261		Harness, Ignitor Jumper		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NIA	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
