01 - Cover Sheet


02 - Control Panel


03 - Burner


04 - Body


05 - Door/drawer


06 - Wiring Diagram


07 - Wiring Diagram

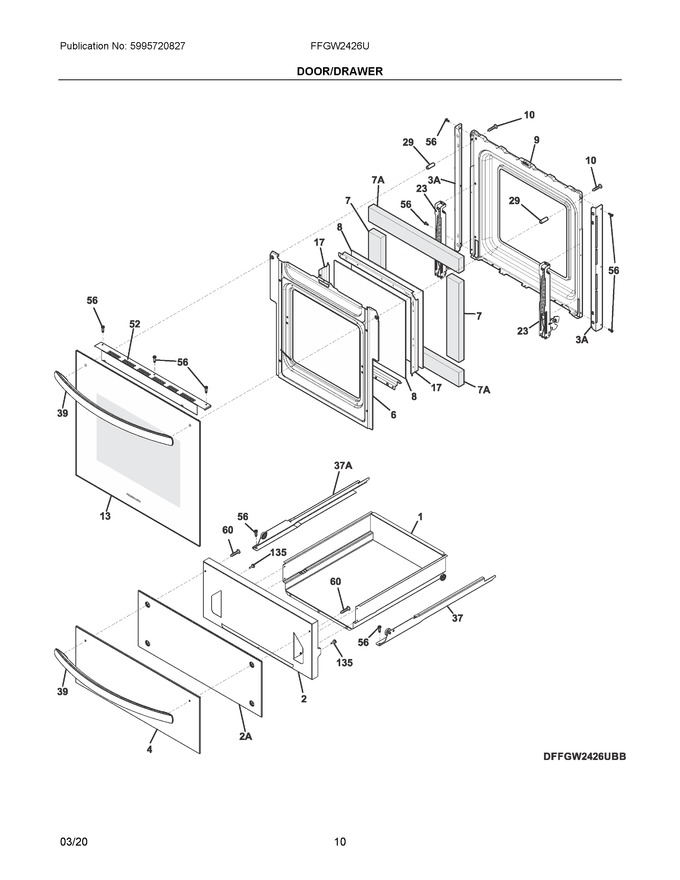

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304508514		Drawer Assembly, W/rollers		Appelez-nous	-
2	5304504259		Liner, Drawer, Black		Appelez-nous	-
4	807278103		Panel, Drawer, Black, Outer		Appelez-nous	-
6	139083101		Shield, Oven Door, Wool		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	139085801		Glass, Door, Inner, Hrc2		Appelez-nous	-
9	139014510		Liner, Door		Appelez-nous	-
10	316433304		Screw, 10-14 X 1.920", Handle Mtg.				$ 14.02
13	5304523848		Door Assembly, Outer, Steel/glass, Black		Appelez-nous	-
17	139085701		Spacer, Door Glass, (2)		Appelez-nous	-
23	316575954		Hinge, Oven Door, Blue		Appelez-nous	-
29	139023400		Spacer, Door Handle, (2)				$ 20.48
37	3203722		Rail, Drawer, Rh		Appelez-nous	-
39	5304513071		Handle, Door, Black				$ 110.61
52	139023801		Trim, Door, Black, Upper		Appelez-nous	-
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
60	5304517503		Screw, Truss Hd, #10-14 X .591", Handle Mtg.		Appelez-nous	-
135	3131903		Bumper, Rubber				$ 55.36
2A	807192402		Panel, Inner Drawer, Black, Front		Appelez-nous	-
37A	3203723		Rail, Drawer, Lh		Appelez-nous	-
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
7A	807193501		Insulation, Door, Top/bottom		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
