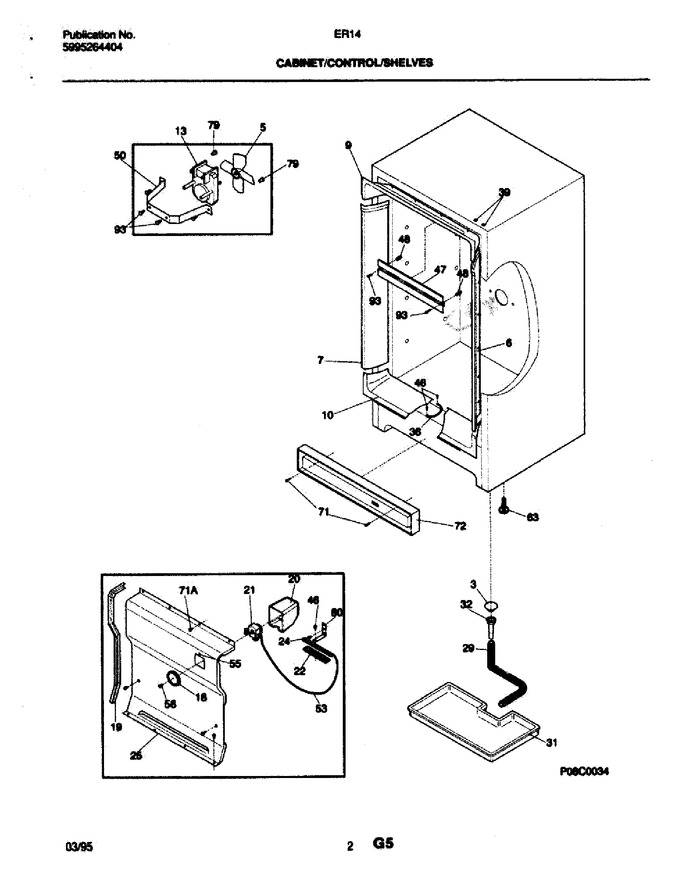

03 - Cabinet/control/shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
5	3205520		Blade, Fan		Appelez-nous	-
6	216107500		Breaker, Hinge Side		Appelez-nous	-
7	216108700		Breaker, Lock Side		Appelez-nous	-
9	216073300		Breaker Top		Appelez-nous	-
10	216073200		Breaker Bottom		Appelez-nous	-
13	216346100		Motor-evap Fan		Appelez-nous	-
18	216008801		Knob-control		Appelez-nous	-
19	216204900		Gasket, Evap Cover				$ 51.45
20	216230300		Cover, Temp Control				$ 49.88
21	216303500		Control-temperature		Appelez-nous	-
22	05878562		Clamp		Appelez-nous	-
24	5300052943		Screw, Clamp				$ 5.30
25	216137400		Cover-evaporator		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	5308016387		Pan, Drain		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
36	06594651		Wire, Ground		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
46	08037851		Screw				$ 3.57
47	5303288233		Baffle-plate		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
50	08013207		Bracket Fan Motor				$ 12.92
53	5303916855		Insulator, Plastic Tubing, Temp Sensor				$ 60.96
55	5303208663		Lens, Indicator, Cold Control		Appelez-nous	-
56	09950853		Screw, Knob		Appelez-nous	-
63	205363701		Foot-adjustable		Appelez-nous	-
71	5303302714		Screw		Appelez-nous	-
72	216294300		Grille/kickplate		Appelez-nous	-
79	301036		Nut, Insert, Fan Bracket   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	5303302760		Screw				$ 8.72
	216502500		Sleeve, Suction Line   (Replaces: 5303207297)				$ 10.85
	5303321319		Touch-up Paint-white   (Replaces: 5303305324)			Immediately	$ 13.46
	5303207388		Wire, Ground, Fan Motor		Appelez-nous	-
71A	08006547		Screw		Appelez-nous	-
