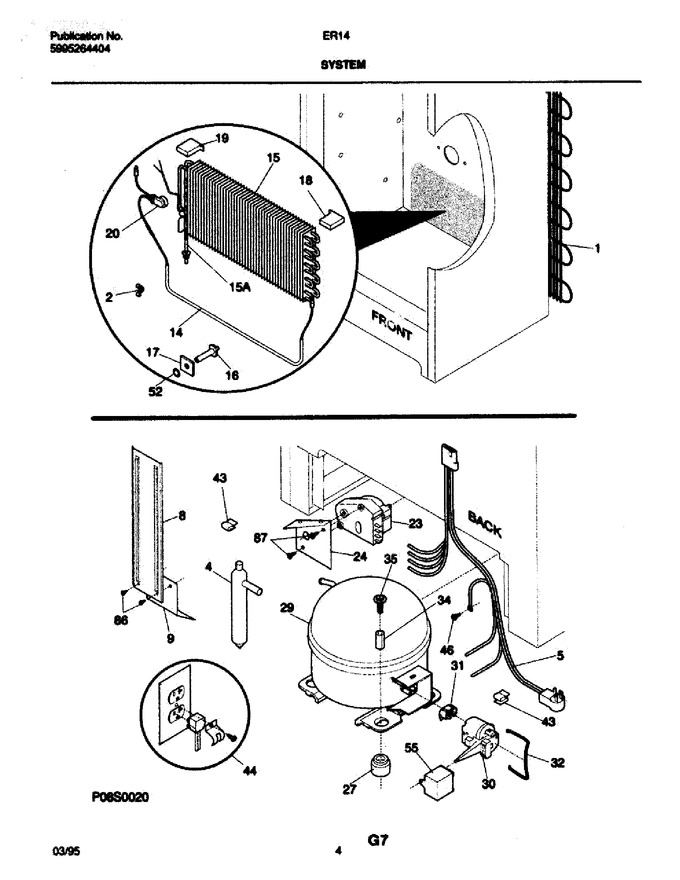

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
2	06599536		Clip, Heater		Appelez-nous	-
4	5303305677		Drier-filter			Immediately	$ 31.67
5	216294700		Harness-wire		Appelez-nous	-
8	216009000		Cover, Wiring		Appelez-nous	-
9	5303272330		Guard-harness		Appelez-nous	-
14	216247000		Heater-defrost		Appelez-nous	-
15	216247200		Evaporator, W/heat Exchangr				$ 154.35
16	06599544		Support, Evaporator		Appelez-nous	-
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
18	06599531		Insulation Block, Rh		Appelez-nous	-
19	3017674		Insulation Block, Lh		Appelez-nous	-
20	216254500		Switch-termination, Tube Mt				$ 91.67
23	5308037967		Timer, Defrost		Appelez-nous	-
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	216336700		Compressor,service		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	216345500		Overload		Appelez-nous	-
32	215012000		Wire-bale				$ 2.63
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Compressor				$ 10.34
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw				$ 3.57
52	08013198		Retainer, Spacer Evap		Appelez-nous	-
55	5304464438		Run Capacitor   (Replaces: 216236200)			Immediately	$ 35.38
87	08037849		Screw, Timer				$ 8.98
	05878556		Clip, Compressor Wire		Appelez-nous	-
15A	216345400		Heat Exchanger Assy		Appelez-nous	-
