01 - Cover

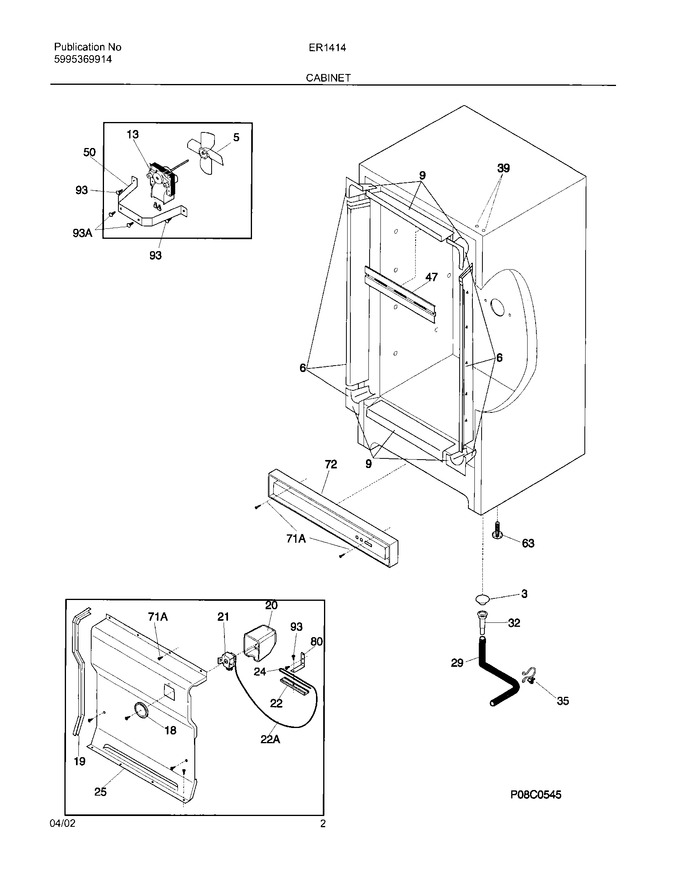

03 - Cabinet
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 62.17 | |||||
| 5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 49.03 | ||||
| 6 | 216604300 | Breaker Kit W/corners |
|
$ 163.64 | |||||
| 9 | 216603400 | Breaker Kit W/corners,28`` ,top Or Bottom |
|
- | |||||
| 13 | 5304436055 | Motor-fan (Replaces: 216822500) |
|
$ 184.37 | |||||
| 18 | 216707200 | Knob-control Cold |
|
$ 44.10 | |||||
| 19 | 216204900 | Gasket, Evap Cover |
|
$ 51.45 | |||||
| 20 | 216230300 | Cover, Temp Control |
|
$ 49.88 | |||||
| 21 | 216788000 | Control-temperature |
|
$ 163.30 | |||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 25 | 216737000 | Cover-evaporator |
|
- | |||||
| 29 | 5304512272 | Hose Drain (Replaces: 216313500) |
|
Immediately | $ 15.90 | ||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 35 | 216273000 | Clip, Drain Hose |
|
$ 22.42 | |||||
| 39 | 5303294372 | Nut Insert-hinge |
|
$ 43.68 | |||||
| 47 | 297192903 | Baffle-plate (Replaces: 216661600) |
|
Immediately | $ 25.31 | ||||
| 50 | 216394050 | Bracket-motor Mtg Fan (Replaces: 216394000) |
|
$ 22.75 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 72 | 216294300 | Grille/kickplate |
|
- | |||||
| 80 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 09948773 | Insulation, Drain Tube |
|
$ 12.60 | ||||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 71A | 216036601 | Screw,quadrex (Replaces: 216347500) |
|
$ 13.65 | |||||
| 93A | 5303302760 | Screw |
|
$ 8.72 |
