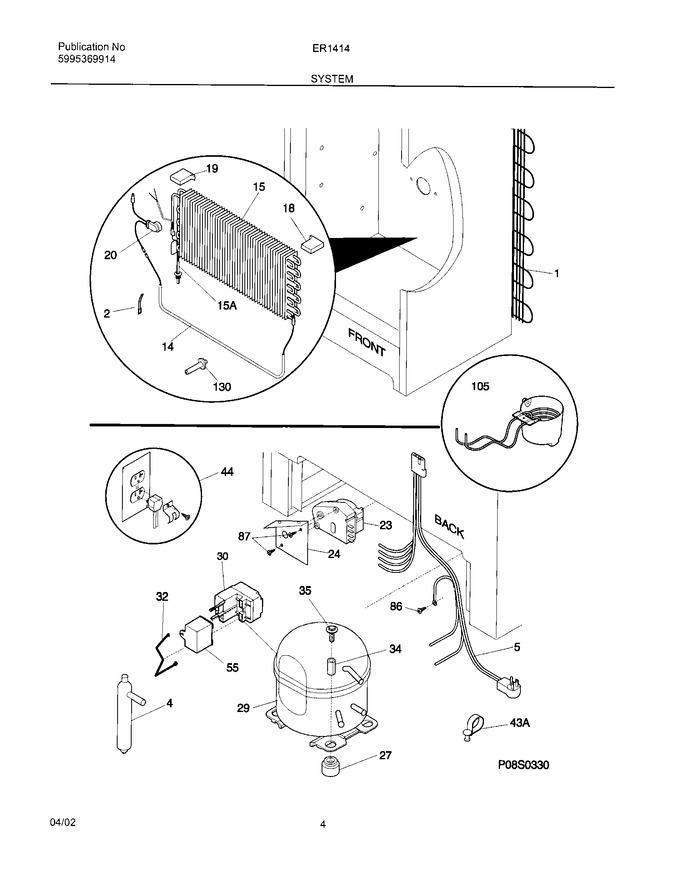

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
2	5308000110		Strap - Evaporator/heater (2)			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216825500		Harness-main		Appelez-nous	-
14	5304496687		Heater-defrost   (Replaces: 216740000)				$ 97.81
15	297414800		Evaporator   (Replaces: 216737400)				$ 145.30
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	297216600		Thermostat-defrost   (Replaces: 216731000)			Immediately	$ 27.52
23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	216726200		Compressor,w/o Electricals		Appelez-nous	-
30	216649307		Controller		Appelez-nous	-
32	218740800		Clamp,elec Cont Mtg ,compressor				$ 65.21
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
105	216854001		Cup-drain		Appelez-nous	-
130	216486800		Support-evaporator		Appelez-nous	-
15A	216751000		Heat Exchanger		Appelez-nous	-
43A	216629700		Clip-harness		Appelez-nous	-
