SELECT A DIAGRAM

01 - Cover

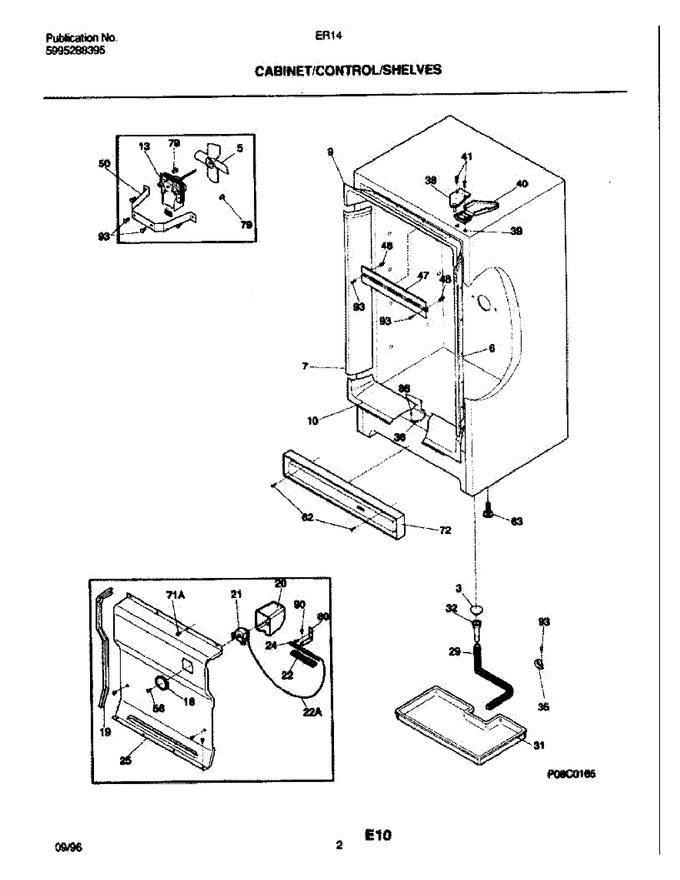

03 - Cabinet/control/ Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216108600		Breaker, Hinge Side		Appelez-nous	-
7	216108700		Breaker, Lock Side		Appelez-nous	-
9	216073300		Breaker Top		Appelez-nous	-
10	216073200		Breaker Bottom		Appelez-nous	-
13	216470200		Motor-evap Fan		Appelez-nous	-
18	216008801		Knob-control		Appelez-nous	-
19	216204900		Gasket, Evap Cover				$ 51.45
20	216230300		Cover, Temp Control				$ 49.88
21	216303500		Control-temperature		Appelez-nous	-
22	05878562		Clamp		Appelez-nous	-
24	5300052943		Screw				$ 5.30
25	216137400		Cover-evaporator		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	5308016387		Pan, Drain		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	06594637		Clip		Appelez-nous	-
36	06594651		Wire, Ground		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
47	5303288233		Baffle-plate		Appelez-nous	-
48	08000456		Spacer, Baffle		Appelez-nous	-
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
56	09950853		Screw, Knob		Appelez-nous	-
62	131420300		Screw				$ 13.46
63	216396900		Foot-adjustable			Immediately	$ 38.39
72	216294300		Grille/kickplate		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
86	216036600		Screw		Appelez-nous	-
90	5303297123		Screw		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
	5303321319		Touch-up Paint-white   (Replaces: 5303305324)			Immediately	$ 13.46
	5303207388		Wire, Ground, Fan Motor		Appelez-nous	-
	06594680		Clip, Breaker		Appelez-nous	-
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
71A	131168200		Screw			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
