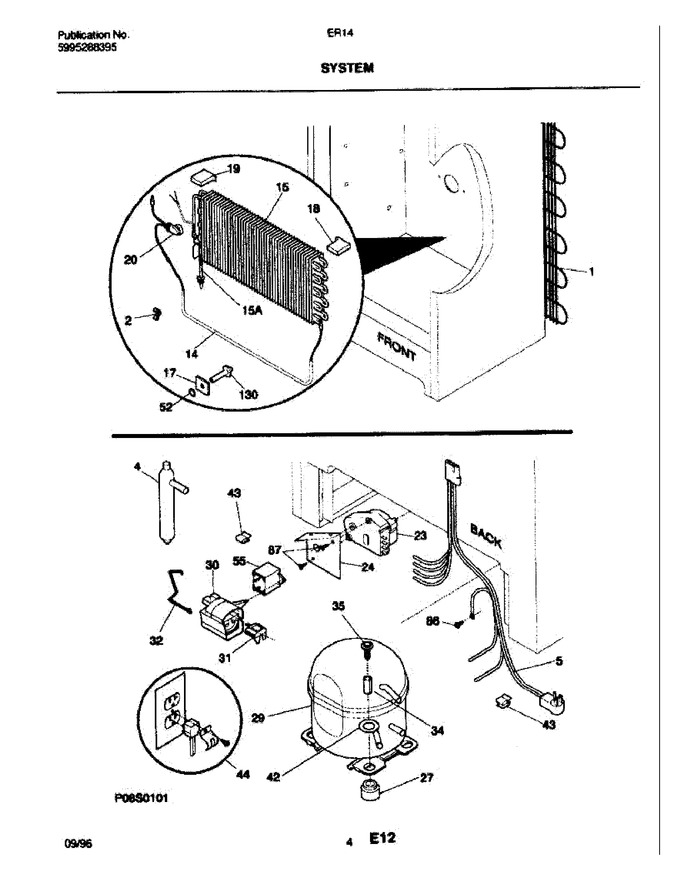

05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	06599536		Clip, Heater		Appelez-nous	-
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216392400		Harness-electrical		Appelez-nous	-
14	216247000		Heater-defrost		Appelez-nous	-
15	216247200		Evaporator				$ 154.35
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
18	06599531		Insulation Block, Rh		Appelez-nous	-
19	3017674		Insulation Block, Lh		Appelez-nous	-
20	216254500		Switch-termination, Tube Mt				$ 91.67
23	5308037967		Timer, Defrost		Appelez-nous	-
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5303925352		Compressor,w/overload		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	216100112		Overload Protector		Appelez-nous	-
32	215012000		Wire-bale				$ 2.63
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw				$ 10.34
43	5303212614		Clip Harness				$ 2.88
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
52	08013198		Retainer, Spacer Evap		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
86	216036600		Screw		Appelez-nous	-
87	08037849		Screw				$ 8.98
130	06599544		Support, Evaporator		Appelez-nous	-
15A	216385200		Heat Exchanger		Appelez-nous	-
