SELECT A DIAGRAM

01 - Cover

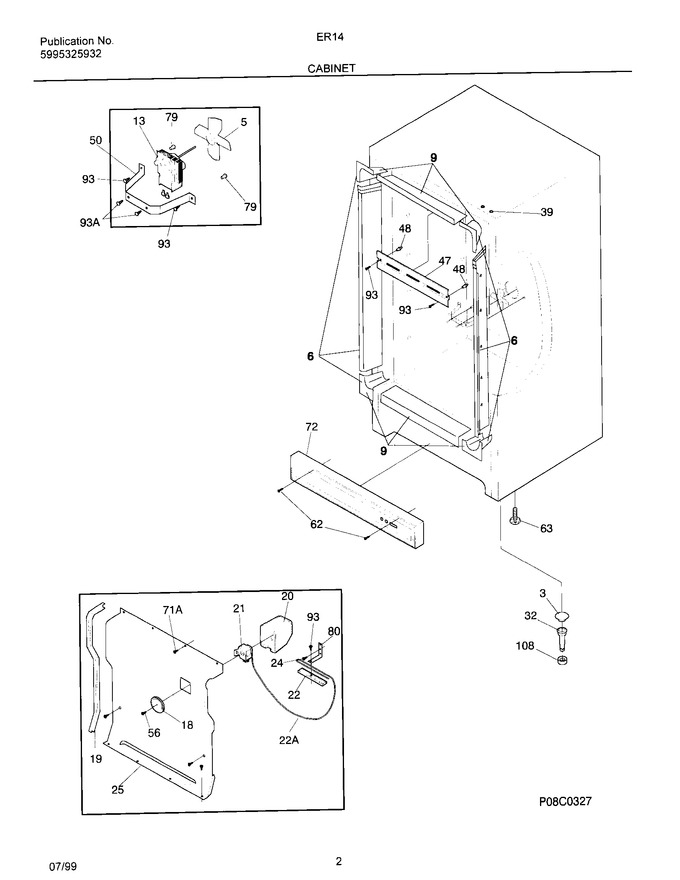

03 - Cabinet


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216604300		Breaker Kit W/corners				$ 163.64
9	216603400		Breaker Kit W/corners,28`` ,top Or Bottom		Appelez-nous	-
13	5304442620		Motor-evap Fan   (Replaces: 216570900)				$ 282.51
18	216591700		Knob-control		Appelez-nous	-
19	216204900		Gasket, Evap Cover				$ 51.45
20	216230300		Cover, Temp Control				$ 49.88
21	216303500		Control-temperature		Appelez-nous	-
22	05878562		Clamp		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216137400		Cover-evaporator		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
39	5303294372		Nut Insert-hinge				$ 43.68
47	5303288233		Baffle-plate		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
56	09950853		Screw, Knob		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	216294300		Grille/kickplate		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
108	216388600		Trap-drain				$ 2.36
	09948773		Insulation, Drain Tube				$ 12.60
	5303311565		Clip-cable				$ 2.10
	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
	216533300		Wire-ground, Fan Motor		Appelez-nous	-
22A	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
71A	216036601		Screw,quadrex   (Replaces: 216347500)				$ 13.65
93A	5303302760		Screw				$ 8.72

    View Diagram in Separate Window       Print Part List
