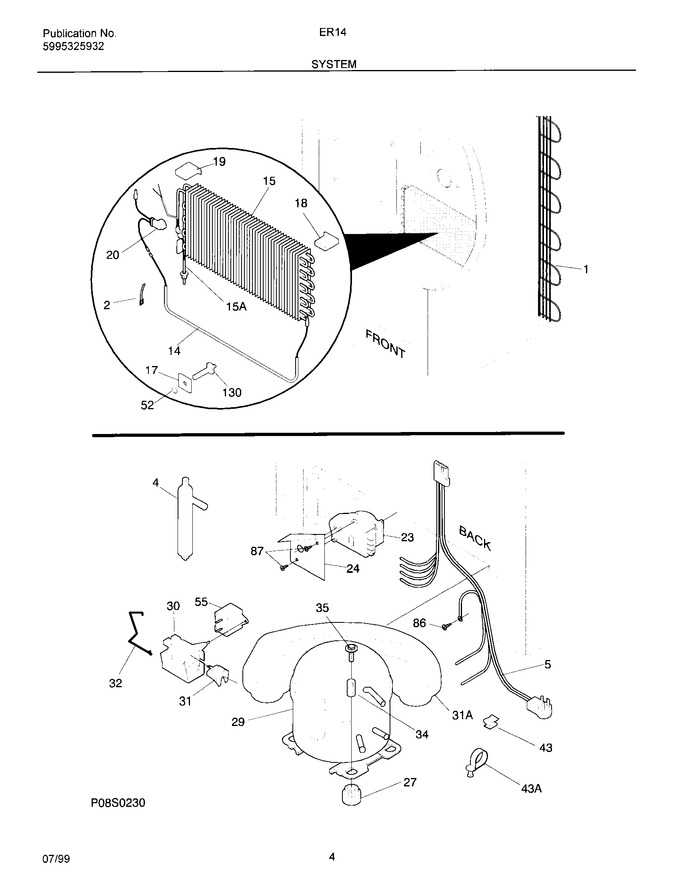

05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
2	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216560400		Harness-main		Appelez-nous	-
14	216608400		Heater-defrost		Appelez-nous	-
15	216247200		Evaporator				$ 154.35
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
18	06599531		Insulation Block, Rh		Appelez-nous	-
19	3017674		Insulation Block, Lh		Appelez-nous	-
20	5304404743		Thermostat-defrost		Appelez-nous	-
23	216563000		Timer,12 Hour,with Knob		Appelez-nous	-
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	216363800		Compressor,w/o Electricals				$ 304.80
29	5303925352		Compressor,w/overload		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	216100112		Overload Protector		Appelez-nous	-
32	215012000		Wire-bale				$ 2.63
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
43	09950610		Clip		Appelez-nous	-
52	08013198		Retainer, Spacer Evap		Appelez-nous	-
55	5304464438		Capacitor-run,180-200 Vac ,15 Microfarad   (Replaces: 216236200)			Immediately	$ 35.38
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
130	06599544		Support, Evaporator		Appelez-nous	-
	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
	05878556		Clip, Compressor Wire		Appelez-nous	-
15A	216385200		Heat Exchanger		Appelez-nous	-
31A	5304428401		Pan-drain   (Replaces: 5303925444)				$ 284.92
43A	5303212614		Clip Harness				$ 2.88
