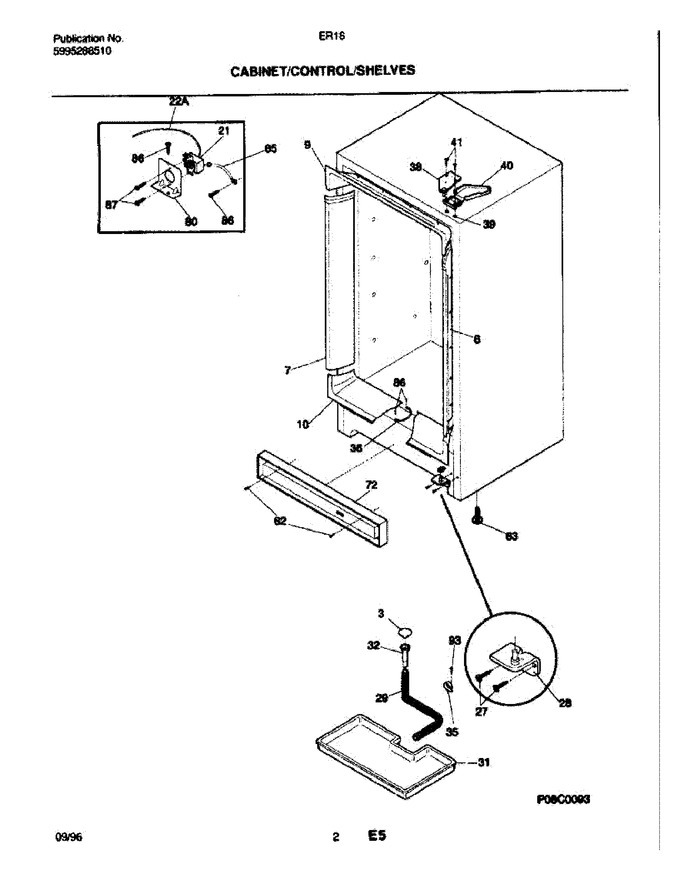

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
6	216108800		Breaker-hinge Side, White		Appelez-nous	-
7	216108900		Breaker,lock Side		Appelez-nous	-
9	216085900		Breaker, Top		Appelez-nous	-
10	216085800		Breaker, Bottom		Appelez-nous	-
21	216055600		Control-temperature		Appelez-nous	-
27	154518001		Screw   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	5308016387		Pan, Drain		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	06594637		Clip		Appelez-nous	-
36	06594651		Wire, Ground		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Foot-adjustable			Immediately	$ 38.39
72	216294419		Grille/kickplate		Appelez-nous	-
80	216307501		Bracket-temp Contr		Appelez-nous	-
85	5303301497		Wire,ground		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
	5303321319		Touch-up Paint-white   (Replaces: 5303305324)			Immediately	$ 13.46
	06594680		Clip, Breaker		Appelez-nous	-
22A	5303916855		Tube, Insulator, Plastic, On Temp Sensor				$ 60.96

    View Diagram in Separate Window       Print Part List
