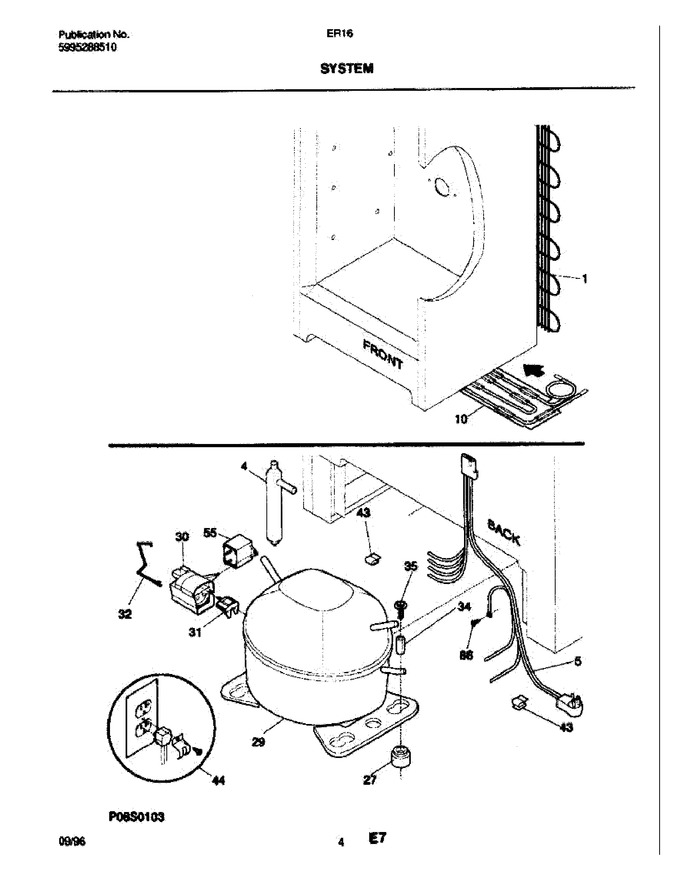

05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 4 | 5303305677 | Drier, Filter (Replaces: 216099900) |
|
Immediately | $ 31.67 | ||||
| 5 | 216427500 | Harness-electrical |
|
- | |||||
| 10 | 216377600 | Heater-drain Pan Assy |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 29 | 5304507765 | Compressor, R134a, With Overload (Replaces: 5303925366) |
|
Immediately | $ 677.23 | ||||
| 30 | 216008900 | Starter-ptc |
|
- | |||||
| 31 | 216100108 | Overload Protector |
|
$ 38.12 | |||||
| 32 | 216147800 | Wire-bale |
|
- | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5303272328 | Screw, Compressor |
|
$ 10.34 | |||||
| 43 | 09950610 | Clip |
|
- | |||||
| 44 | 08016777 | Clamp, Pwr Cord Assy |
|
- | |||||
| 55 | 218719201 | Capacitor-run |
|
- | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 5303208622 | Clip Grounding |
|
- |
