01 - Cover Sheet
02 - Control Panel
03 - Upper Oven
04 - Lower Oven
05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

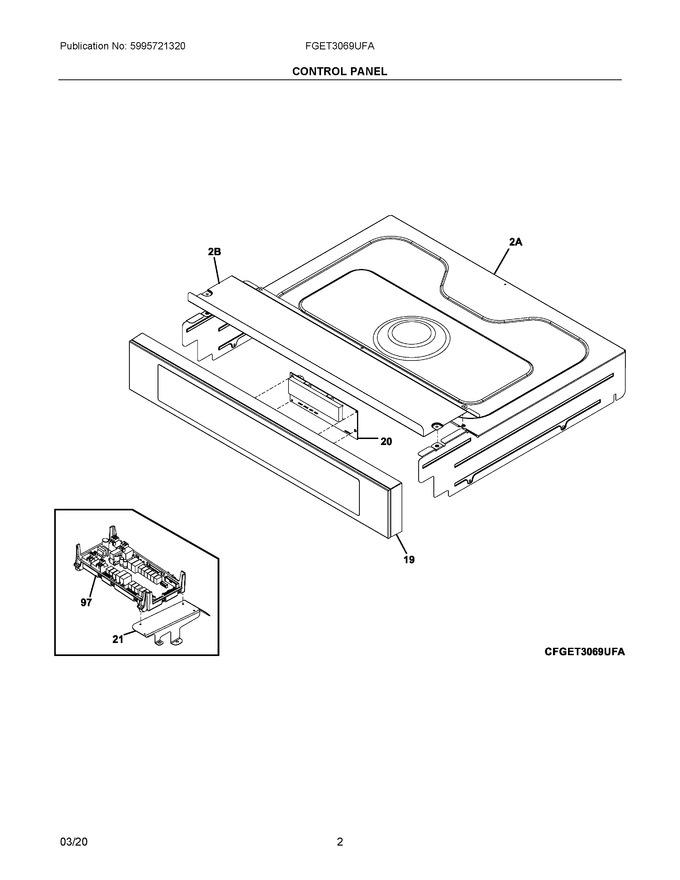

| 19 | 5304524017 | Control Panel Assembly, Steel/glass, Stainless/black, W/touch Pad |
|
$ 699.88 | |||||
| 20 | 316474961 | Controller, Electronic (Replaces: 316474959) |
|
$ 282.86 | |||||
| 21 | 5304520558 | Bracket, Ovc Support |
|
$ 25.79 | |||||
| 97 | 316475806 | Board Assembly, Ovc2 Pcba, W/chassis |
|
Immediately | $ 641.99 | ||||
| 2A | 5304521623 | Shield, Wire, Top |
|
$ 96.32 | |||||
| 2B | 5304520853 | Cover, Control Access |
|
$ 57.91 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 3201861 | Screw, 6 X 0.375, (4) |
|
$ 0.76 | |||||
| NI | 5304523462 | Harness, Wiring, Communication, Control Panel |
|
$ 24.26 | |||||
| NI | 5304514831 | Harness, Grounding Wire |
|
$ 11.38 | |||||
| NI | 5304514832 | Harness, Wiring, Upper Oven, Hall Effect |
|
$ 51.57 | |||||
| NIA | 5303323129 | Screw, 8 X 0.750 |
|
- |
