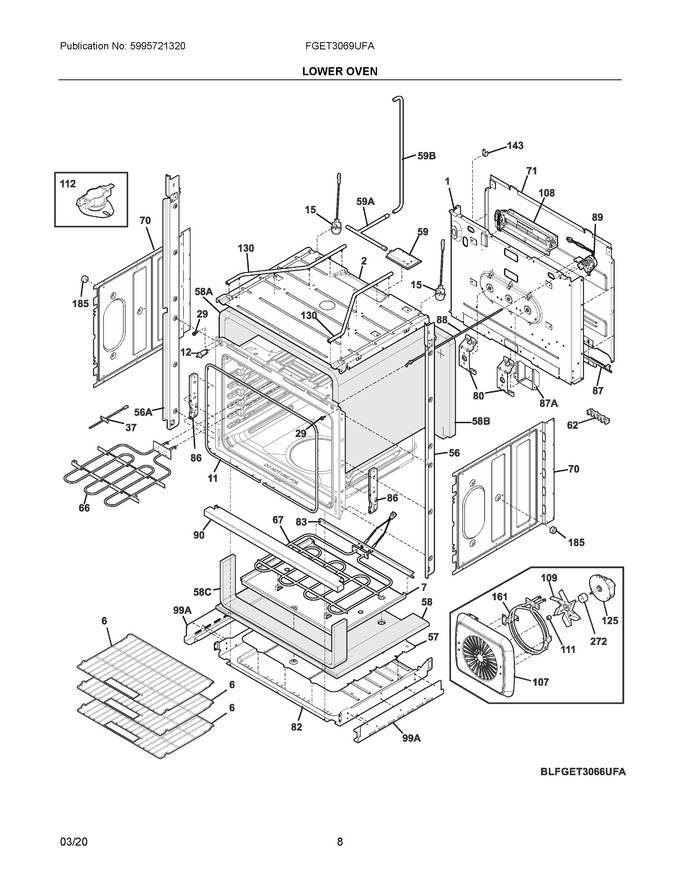

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139035302		Panel, Main Back		Appelez-nous	-
2	808651301		Shield, Insulation, Top		Appelez-nous	-
6	5304514983		Rack, Oven, W/handle				$ 137.58
7	5304520858		Box, Bake Element				$ 127.40
11	139036701		Seal, Oven Door				$ 98.99
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517600		Bumper, Front, Main				$ 12.05
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
56	5304520852		Trim, Side Filler, Black, Rh				$ 51.03
57	5304521752		Sheild, Air Wash, Lower		Appelez-nous	-
58	808816501		Insulation, Bottom		Appelez-nous	-
59	808931403		Vent Box Assy., W/catalyst		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	140123969028		Element, Broil, 6 Pass, 4000w   (Replaces: 5304514924)		Appelez-nous	-
67	5304516286		Element, Hidden Bake, 2200w			Immediately	$ 109.21
70	139000601		Shield, Insulation, Sides, (2)				$ 72.05
71	808650302		Shield, Rear Wall   (Replaces: 5304520854)				$ 137.50
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	808108901		Shield, Insulation, Lower		Appelez-nous	-
83	5304520860		Shield, Bake Tray, Rear				$ 24.10
86	139026900		Receptacle, Hinge, Dual Spring				$ 32.61
87	5304520557		Bracket, Cable Box		Appelez-nous	-
88	808721601		Rod, Door Latch				$ 53.85
89	5304528925		Motor Assy., Door Latch   (Replaces: 808721803)				$ 117.12
90	5304514922		Trim, Vent, Stainless, Lower				$ 113.00
91	5304518870		Divider, Lower Air, Black				$ 81.90
107	139013903		Cover, Convection Fan				$ 46.86
108	808963704		Blower Assy., Cooling, Lower Oven			Immediately	$ 184.28
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
112	5304494446		Switch, Thermal Cutoff, 145c				$ 43.24
125	139008504		Motor, Convection Fan, 2 Speed			Immediately	$ 170.57
130	808931801		Seal, Silicone, (2)		Appelez-nous	-
131	808651702		Duct, Cool Fan, Lower				$ 115.27
143	318172904		Bracket, Wire Support		Appelez-nous	-
161	8581390065036		Element, Convection, 2500w   (Replaces: 139006500)				$ 47.63
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
272	139021700		Tube, Convection Fan				$ 17.72
56A	5304520850		Trim, Side Filler, Black, Lh				$ 51.03
58A	808905501		Insulation, Oven Wrapper		Appelez-nous	-
58B	808905101		Insulation, Oven Back		Appelez-nous	-
58C	807887503		Insulation, Bake Element, Front		Appelez-nous	-
59A	808931501		Tube, Extension, Catalyst		Appelez-nous	-
59B	808931601		Tube, Connector, Catalyst		Appelez-nous	-
87A	5304520866		Shield, Terminals, Bake Element		Appelez-nous	-
99A	5304514974		Support, Floor		Appelez-nous	-
NI	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 13.46
NI	5304506955		Harness Assembly, Conduit, Elbow Connector, & Wiring				$ 174.43
NI	5304518585		Harness, Wiring, Main				$ 238.89
NI	5304514908		Harness, Convection				$ 57.64
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NIA	5304514913		Harness, Wiring, Door Switch		Appelez-nous	-
NIA	318167300		Clip, Rod				$ 2.84
NIA	139022101		Insualtion, Noise Dampening		Appelez-nous	-
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIAA	5304500643		Bracket, Catalyst Tube		Appelez-nous	-
NIB	5303311164		Spring				$ 18.95
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
