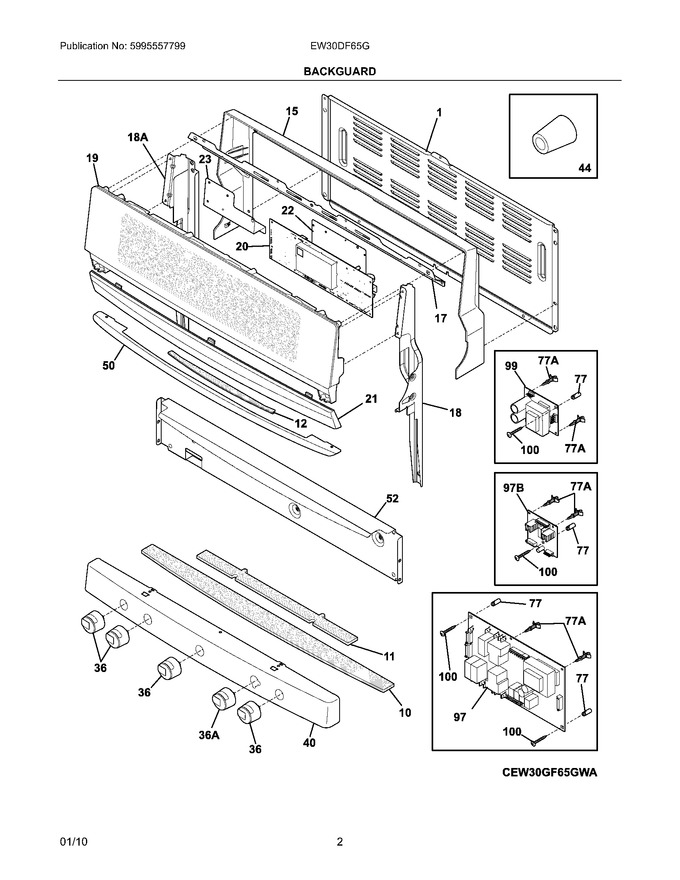

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316500100		Shield,rear Wall		Appelez-nous	-
10	316528700		Insulation,manifold Panel				$ 89.31
11	316528800		Insulation,front Frame				$ 60.43
12	316538601		Insualtion,deflector				$ 13.70
15	316500400		Wrapper,backguard ,white		Appelez-nous	-
17	316500301		Shield,upper ,backguard		Appelez-nous	-
18	316526000		Channel,support ,rh ,backguard		Appelez-nous	-
21	316515402		Support,backguard ,white ,lower				$ 148.79
22	316520300		Bracket,control Mtg.		Appelez-nous	-
23	316520400		Bracket,triac Mtg.		Appelez-nous	-
36	316535701		Knob,top Valve ,white ,(4)		Appelez-nous	-
40	316512701		Panel,manifold ,white		Appelez-nous	-
44	316246500		Spacer,oven				$ 34.39
50	316537601		Deflector,heat Shield ,stainless				$ 159.81
52	316514201		Shield,backguard ,black ,inner				$ 50.87
77	316247900		Spacer,power Board				$ 44.65
100	5303289910		Screw,8a ,1`` ,(2)				$ 5.67
18A	316526001		Channel,support ,lh ,backguard		Appelez-nous	-
36A	316535707		Knob,top Valve ,white ,dual				$ 101.12
77A	316114100		Spacer				$ 60.96
F19	316538413		Control Panel Assembly,user Interface ,white		Appelez-nous	-
F20	316516517		Controller,electronic ,es630a		Appelez-nous	-
F97	316443920		Board,relay ,oven Control			Immediately	$ 403.75
F97B	316519200		Board,variable Speed			Immediately	$ 256.24
F99	316535200		Board,power Supply ,8v ,(2)				$ 408.36
FNI	316525600		Harness,wiring ,backguard				$ 77.92
NI	316533900		Screw,truss Hd ,8-16 X 1.5 ,(10)				$ 12.02
NI	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
NI	316525500		Screw,blunt Pnt Ph B ,8-18 X .875 ,(2)		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
