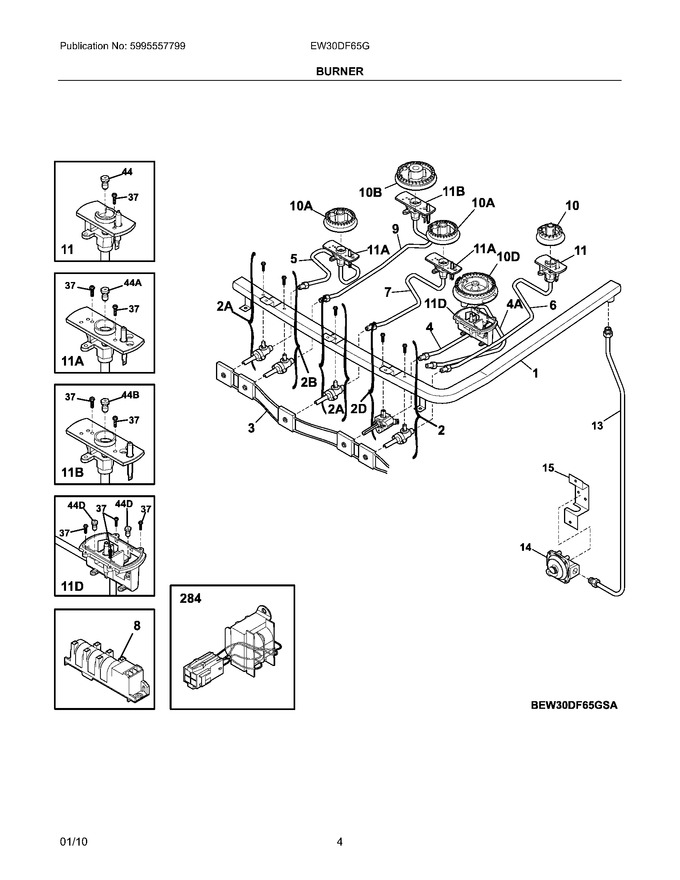

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	808608804		Module,spark   (Replaces: 318079001)			Immediately	$ 76.06
15	316091600		Bracket-regulator				$ 73.56
44	316523504		Orifice,top Burner ,5k				$ 19.69
284	316536100		Transformer			Immediately	$ 210.83
44A	316523500		Orifice,top Burner ,9.5k				$ 13.90
44B	316523506		Orifice,top Burner ,14k		Appelez-nous	-
44D	316523508		Orifice,top Burner ,18k				$ 13.23
F1	316505200		Manifold		Appelez-nous	-
F10	316510800		Burner,sealed ,5k				$ 106.41
F10A	316511000		Burner,sealed ,9.5k		Appelez-nous	-
F10B	316511200		Burner,sealed ,14k				$ 167.98
F10D	316525400		Burner,sealed ,dual ,18k		Appelez-nous	-
F11	316524800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 125.84
F11A	316524900		Ignitor/orifice Assy.,top Burner ,9.5k ,(2),w/holder				$ 78.77
F11B	316525000		Ignitor/orifice Assy.,top Burner ,14k ,w/holder				$ 101.85
F11D	316525100		Ignitor/orifice Assy.,top Burner ,18k ,w/holder		Appelez-nous	-
F13	316545700		Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings				$ 148.58
F14	318122700		Regulator,pressure				$ 139.63
F2	316520700		Valve,burner ,5k				$ 126.87
F2A	316520701		Valve,burner ,9.5k				$ 131.84
F2B	316520703		Valve,burner ,14.2k				$ 146.01
F2D	316412512		Valve,top Burner ,18k ,dual Port		Appelez-nous	-
F3	316518201		Harness Assembly,ignitor ,w/switches				$ 204.03
F37	316540900		Screw,burner ,head Mtg ,(8)			Immediately	$ 15.17
F4	316509000		Tube,burner ,right Front				$ 95.34
F4A	316509100		Tube,burner ,right Front				$ 91.40
F5	316509300		Tube,burner ,rf & Lf ,(2)		Appelez-nous	-
F6	316509200		Tube,burner ,rr		Appelez-nous	-
F7	316509400		Tube,burner ,center				$ 117.28
F9	316526600		Tube,burner ,left Rear				$ 107.69
FNI	316526900		Harness,ignitor				$ 70.88
FNI	316064103		Wire,ground Assembly		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316434900		Shield,valve ,bridge Burner				$ 11.55
NI	316536300		Bracket,spark Module		Appelez-nous	-
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
