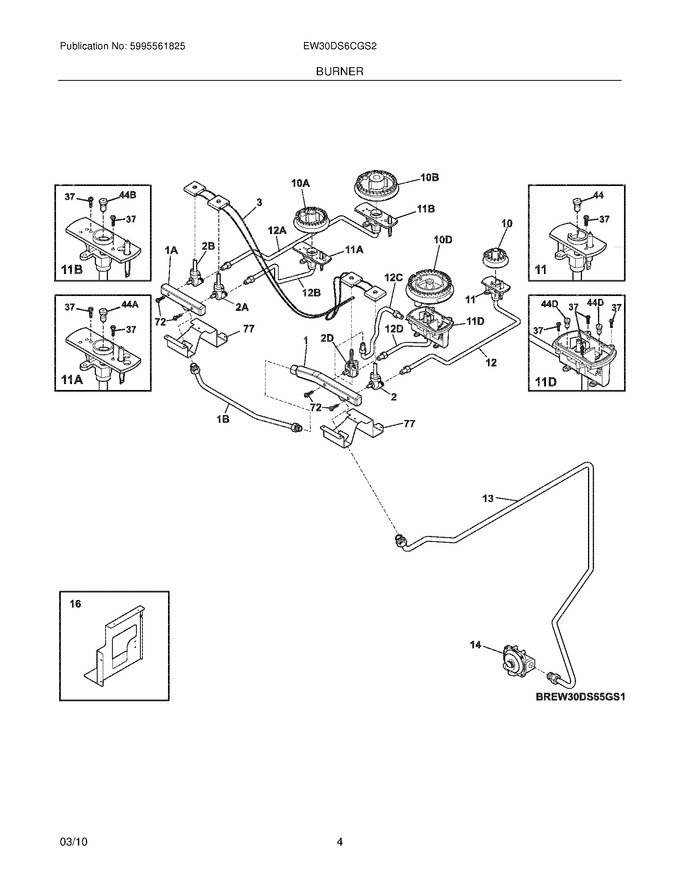

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318907000		Manifold,pipe ,rh				$ 119.54
12	318901100		Tubing,5k Burner ,rh Rear		Appelez-nous	-
13	318902300		Tubing,manifold Supply				$ 117.11
16	318590002		Panel,regulator Mtg.				$ 54.76
37	316540900		Screw,ignitor Assy Mt ,6-32 X .62   (Replaces: 316518100)			Immediately	$ 15.17
44	316523504		Orifice,top Burner ,5k				$ 19.69
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318906710		Bracket,manifold ,(2)		Appelez-nous	-
12A	318901300		Tubing,14k Burner ,lh Rear				$ 34.02
12B	318901500		Tubing,9.5k Burner ,lh Front				$ 32.92
12C	318901700		Tubing,18k Burner ,rh Front				$ 34.49
12D	318901900		Tubing,18k Burner ,rh Front				$ 28.88
1A	318907200		Manifold,pipe ,lh				$ 115.03
1B	318902100		Tubing,interconnect				$ 490.04
44A	316523500		Orifice,top Burner ,9.5k				$ 13.90
44B	316523506		Orifice,top Burner ,14k		Appelez-nous	-
44D	316523508		Orifice,top Burner ,18k				$ 13.23
F10	316510800		Burner,sealed ,5k				$ 106.41
F10A	316511000		Burner,sealed ,9.5k		Appelez-nous	-
F10B	316511200		Burner,sealed ,14k				$ 167.98
F10D	316525400		Burner,sealed ,dual ,18k		Appelez-nous	-
F11	316524800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 125.84
F11A	316524900		Ignitor/orifice Assy.,top Burner ,9.5k ,(2),w/holder				$ 78.77
F11B	316525000		Ignitor/orifice Assy.,top Burner ,14k ,w/holder				$ 101.85
F11D	316525100		Ignitor/orifice Assy.,top Burner ,18k ,w/holder		Appelez-nous	-
F14	316082904		Regulator-pressure				$ 588.12
F2	318387400		Valve,top Burner ,5k				$ 174.43
F2A	318387401		Valve,top Burner ,9.5k				$ 166.56
F2B	318387402		Valve,top Burner ,14k				$ 182.86
F2D	316496602		Valve,burner ,dual Port		Appelez-nous	-
F3	318232639		Wiring Harness,w/igntr Switch				$ 153.07
FNI	318052534		Ground Wire,w/terminal		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318186915		Lp Conversion Kit				$ 64.47
NI	318199766		Wiring Harness,ignitor		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
