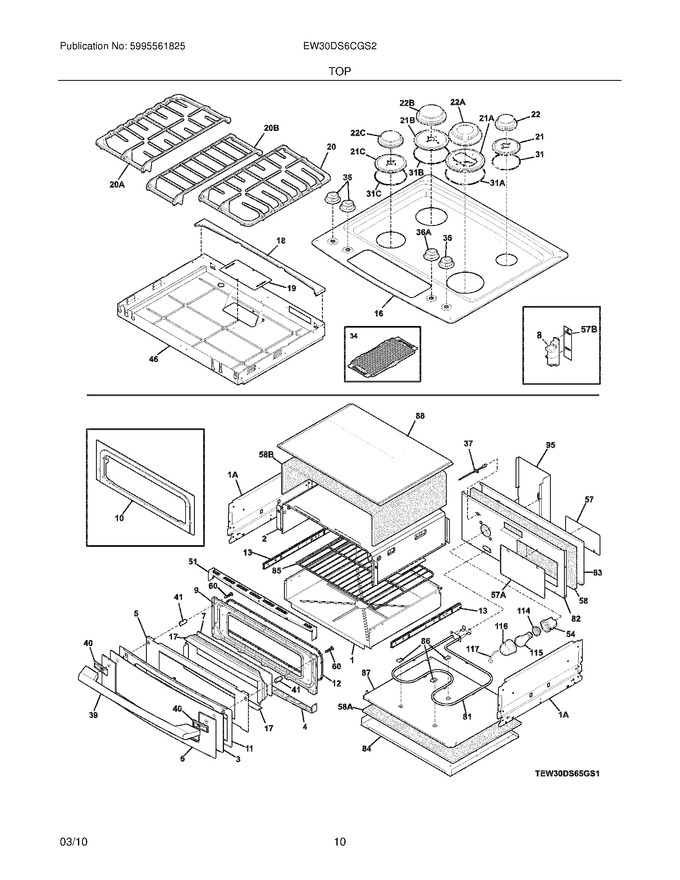

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318384703		Body,drawer   (Replaces: 318384705)				$ 340.51
2	318384601		Wrapper,outer				$ 172.94
3	318904408		Glass,drawer ,black ,outer		Appelez-nous	-
4	318904903		Trim,door ,black ,lower				$ 31.87
5	318391902		Deflector,drawer   (Replaces: 318391901)		Appelez-nous	-
6	318377911		Trim,front ,stainless		Appelez-nous	-
7	318384800		Glass,inner				$ 203.89
9	318384901		Liner,drawer				$ 93.17
10	318385401		Cover,front ,drawer				$ 154.89
11	318385701		Frame,drawer ,outer				$ 343.25
12	318053326		Seal,warmer Drawer				$ 95.68
13	318385600		Glide,drawer ,(2)				$ 111.48
16	318536527		Maintop Assembly,stainless ,w/support ,w/graphics				$ 990.28
17	318385000		Spacer,glass ,(2)				$ 19.80
18	318906900		Support,deflector Box				$ 37.47
19	318394300		Plate,shutter		Appelez-nous	-
20	318909206		Grate,burner ,black ,rh   (Replaces: 318909200)				$ 310.17
21	316514800		Skirt,5k Burner ,black				$ 87.10
22	316510902		Cap,5k Burner ,black				$ 166.32
31	316515200		Seal,5k Burner				$ 23.42
34	316534001		Griddle				$ 213.34
36	318905202		Knob,burner ,stainless ,(3)				$ 114.35
39	241761004		Handle,door ,stainless		Appelez-nous	-
40	318902902		Spacer,handle ,grey ,(2)				$ 53.76
41	318902600		Spacer,handle ,(2)				$ 19.58
46	318900111		Box,deflector		Appelez-nous	-
51	318904701		Trim,door ,black ,upper				$ 73.76
54	5303271606		Housing,oven Light		Appelez-nous	-
57	318386300		Panel,service ,rear				$ 25.89
58	318362120		Insulation,rear		Appelez-nous	-
60	5304441734		Screw,10-24 X 2 ,(2)				$ 10.87
82	318385302		Panel,back				$ 40.10
83	318385201		Panel,back Insul				$ 43.20
84	318385101		Panel,lower Insul		Appelez-nous	-
85	318908100		Rack,mini Oven				$ 163.72
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318295311		Panel,bottom				$ 71.20
88	318532305		Panel,deflector ,mini Oven   (Replaces: 318532302)		Appelez-nous	-
95	318303811		Shield,wire		Appelez-nous	-
114	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
115	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
116	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
117	5303205904		Clip,lamp Cover ,retainer				$ 7.67
1A	318300003		Panel,warmer Drawer ,side ,(2)   (Replaces: 318300000)				$ 56.13
20A	318909201		Grate,burner ,black ,lh		Appelez-nous	-
20B	318909403		Grate,burner ,black ,center   (Replaces: 318909400)				$ 257.24
21A	316515100		Skirt,18k Burner ,black ,(2)				$ 63.47
21B	316515000		Skirt,14k Burner ,black				$ 71.56
21C	316514900		Skirt,9.5k Burner ,black				$ 49.72
22A	316511502		Cap,burner ,18k ,black				$ 248.45
22B	316511302		Cap,14k Burner ,black ,(2)				$ 171.15
22C	316511102		Cap,9.5k Burner ,black				$ 169.84
31A	316515203		Seal,18k Burner ,(2)				$ 70.31
31B	316515202		Seal,14k Burner				$ 81.89
31C	316515201		Seal,9.5k Burner		Appelez-nous	-
36A	318905205		Knob,burner ,stainless ,dual				$ 127.40
57A	318386400		Panel,service ,front		Appelez-nous	-
57B	318295611		Panel,service				$ 15.12
58A	318362121		Insulation,bottom		Appelez-nous	-
58B	318362122		Insulation,upper		Appelez-nous	-
F37	316217005		Probe,oven Temp				$ 78.67
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
F81	318255302		Element,warmer Drawer				$ 138.02
FNI	318004902		Switch,thermal			Immediately	$ 71.44
FNI	318083098		Harness,wiring ,mini Oven				$ 43.52
NI	5304463976		Screw,8-32 X 3/16 ,(6)		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	318534401		Gasket,maintop				$ 74.77
NI	5304463975		Screw,glides ,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	318534600		Plate,wire Shield		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5304462582		Screw,10-24 X 1.79				$ 9.13
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
