01 - Cover Sheet

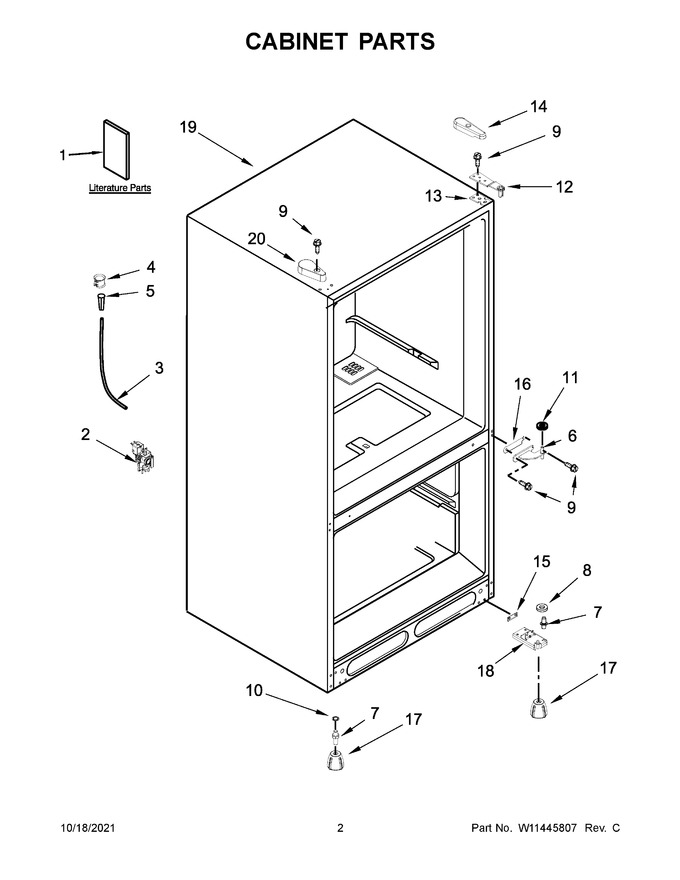

02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Shelf Parts
06 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11449055 | Use And Care Guide |
|
- | |||||
| 2 | WPW10498976 | Valve, Inlet (Replaces: W10498976) |
|
Immediately | $ 113.49 | ||||
| 3 | W11680400 | Tube, Water (Replaces: W10837812) |
|
Immediately | $ 75.02 | ||||
| 4 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 56.48 | |||||
| 5 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.06 | |||||
| 6 | W11173998 | Hinge, Center |
|
$ 62.36 | |||||
| 7 | W11678964 | Pin, Hinge (bottom) (Replaces: W11183254) |
|
Immediately | $ 7.07 | ||||
| 8 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 9 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 10 | R30039 | Screw, Leveler |
|
- | |||||
| 11 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 12 | W11191773 | Assembly, Top Hinge |
|
$ 61.83 | |||||
| 13 | W10399311 | Shim, Top Hinge |
|
$ 13.91 | |||||
| 14 | W11467697 | Hinge Cover (black) |
|
- | |||||
| 15 | W11269192 | Shim, Bottom Hinge (Replaces: W10919908) |
|
Immediately | $ 14.47 | ||||
| 16 | W11269182 | Shim, Center Hinge (Replaces: W11175787) |
|
$ 14.48 | |||||
| 17 | W11545335 | Leg, Leveler (Replaces: W11176400) |
|
Immediately | $ 14.02 | ||||
| 18 | W11580021 | Assembly, Bottom Hing (Replaces: W11217747) |
|
Immediately | $ 29.69 | ||||
| 19 | NP | Cabinet (not Serviced) |
|
- | |||||
| 20 | W11266887 | Cover, Connector Box (black) |
|
- | |||||
| 14A | W11467696 | Hinge Cover (grey) |
|
$ 20.96 | |||||
| 1A | W11429021 | Energy Guide |
|
- | |||||
| 20A | W11266885 | Cover, Connector Box (grey) |
|
$ 20.83 |
