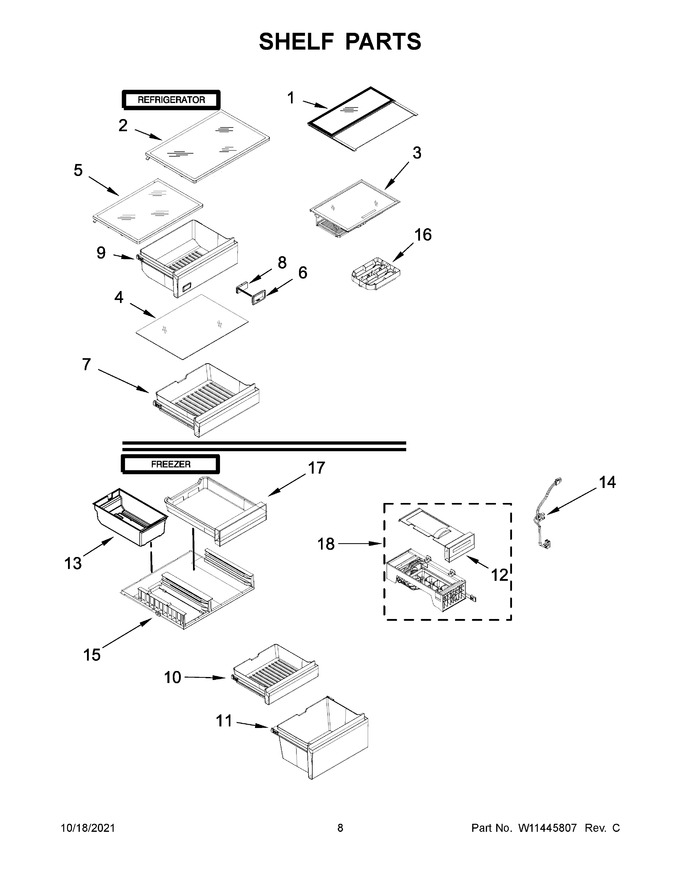

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11424097		Shelf, Tuck   (Replaces: W11391367)				$ 209.35
2	W11409862		Shelf, Glass   (Replaces: W11391363)				$ 196.25
3	W11394623		Assembly, Shelf   (Replaces: W11262585)				$ 195.43
4	W11424101		Shelf, Glass   (Replaces: W11391361)				$ 196.52
5	W11394627		Glass, Meat Pan   (Replaces: W11248393)				$ 139.52
6	W10435530		Frame, Humidity Control				$ 13.96
7	W11403606		Assembly, Crisper				$ 111.32
8	W10431229		Control, Humidity				$ 13.81
9	W11391352		Pan, Meat				$ 111.32
10	W11391313		Drawer, Middle				$ 115.05
11	W11391351		Drawer, Bottom			Immediately	$ 176.23
12	W11440727		Ice Maker Front, Cover   (Replaces: W11263186)		Appelez-nous	-
13	W11436901		Bin, Ice Cube   (Replaces: W11425342)				$ 31.74
14	W11432743		Jumper, Wire Assembly				$ 59.36
15	W11261262		Shelf, Multi Utility				$ 202.81
16	W11348333		Holder, Beverage				$ 193.67
17	W11391358		Freezer, Drawer (right Hand)				$ 58.81
18	W11436851		Assembly, Ice Maker   (Replaces: W11337838)			Immediately	$ 137.23
NI	NP		Cabinet (not Serviced)		Appelez-nous	-
NI	W11436901		Ice Cube Bin				$ 31.74
NI	W11416493		Complete Ice Maker Kit (includes Bin)				$ 136.07
