SELECT A DIAGRAM

01 - Cover Sheet

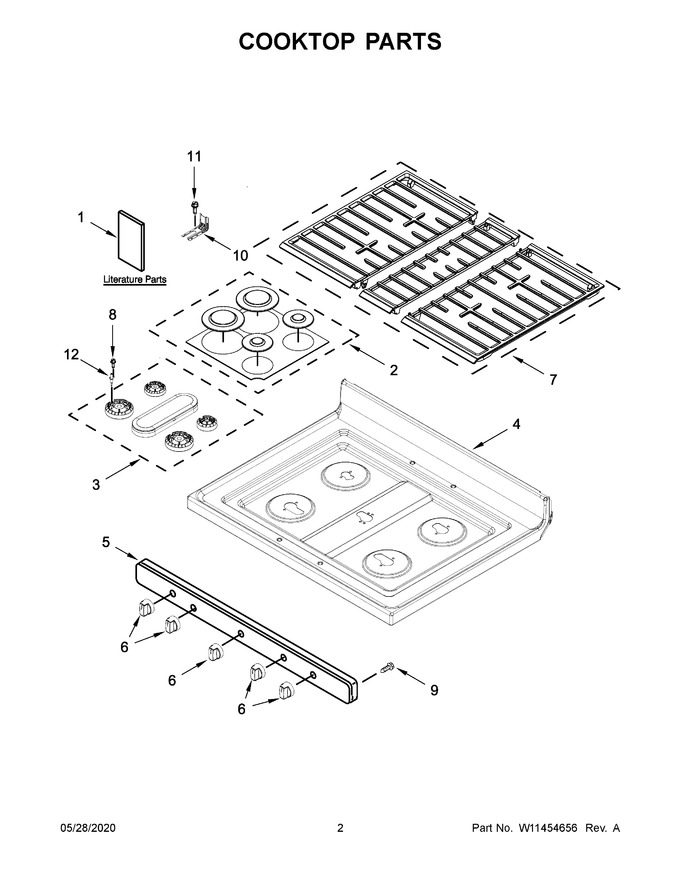

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11404105		Installation Instructions		Appelez-nous	-
2	W11455147		Kit, Burner Cap (black(set Of 4))   (Replaces: W11395131)			Immediately	$ 85.01
3	W11662402		Burner Kit   (Replaces: W11367107)			Immediately	$ 108.84
4	W11454367		Cooktop (black)   (Replaces: W11418086)			Immediately	$ 364.91
5	W11165140		Panel, Manifold (stainless)   (Replaces: W11044911)				$ 310.07
6	W11159630		Knob, Control (stainless)   (Replaces: W11023139)			Immediately	$ 60.35
7	W11252165		Kit, Grate (black)   (Replaces: W11090908)				$ 355.20
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 12.63
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
10	W11447673		Anti-tip Bracket   (Replaces: W11379945)			Immediately	$ 28.64
11	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
12	W11453940		Electrode (left Front, Left Rear)   (Replaces: W11428831)				$ 55.25
12A	W11453920		Electrode (right Front, Right Rear, Center)   (Replaces: W11428858)				$ 55.16
1A	W11404099		Use And Care Guide		Appelez-nous	-
1B	W11333114		Tech Sheet		Appelez-nous	-
1C	W11351206		Wiring Diagram		Appelez-nous	-
NI	3196896		Clip, Wire		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10849001		Harness, Main				$ 161.78
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 185.62
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
