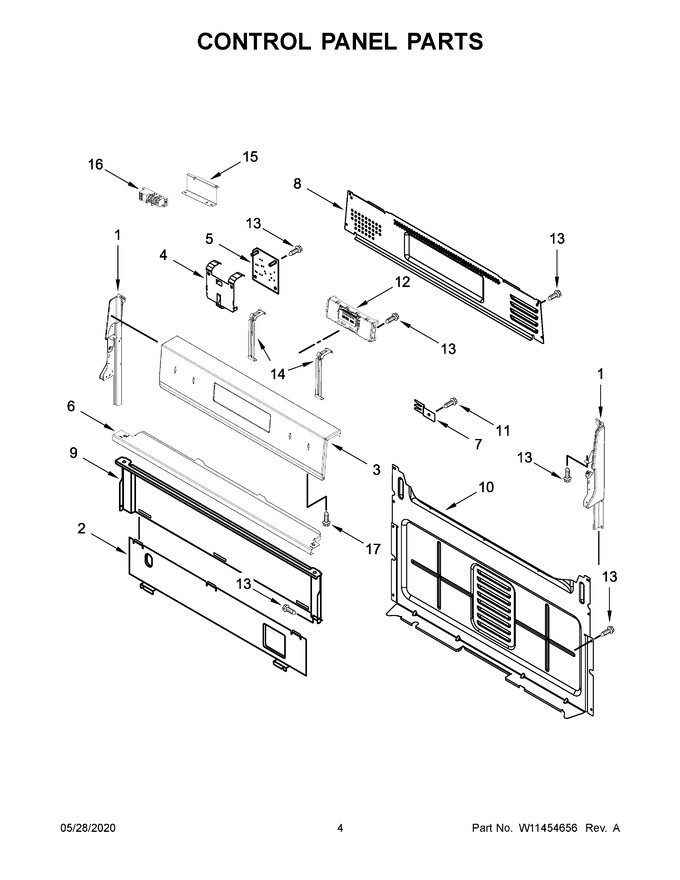

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 131.85
2	8053505		Shield, Heat				$ 142.19
3	W11026866		Panel, Control (stainless)   (Replaces: W10835288)				$ 462.94
4	W10762981		Bracket, Mounting				$ 65.50
5	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 196.59
6	W10516123		Bracket, Console Mounting		Appelez-nous	-
7	8523412		Bracket, Rear Cooktop				$ 143.91
8	W10198745		Cover, Upper				$ 110.48
9	W10192841		Shield, Heat				$ 91.45
10	W10184251		Cover, Back		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
12	W11258611		Control, Electronic (lcx) (black)   (Replaces: W11204531)				$ 439.68
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
14	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 72.69
15	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
16	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 161.15
17	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 36.40
