View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

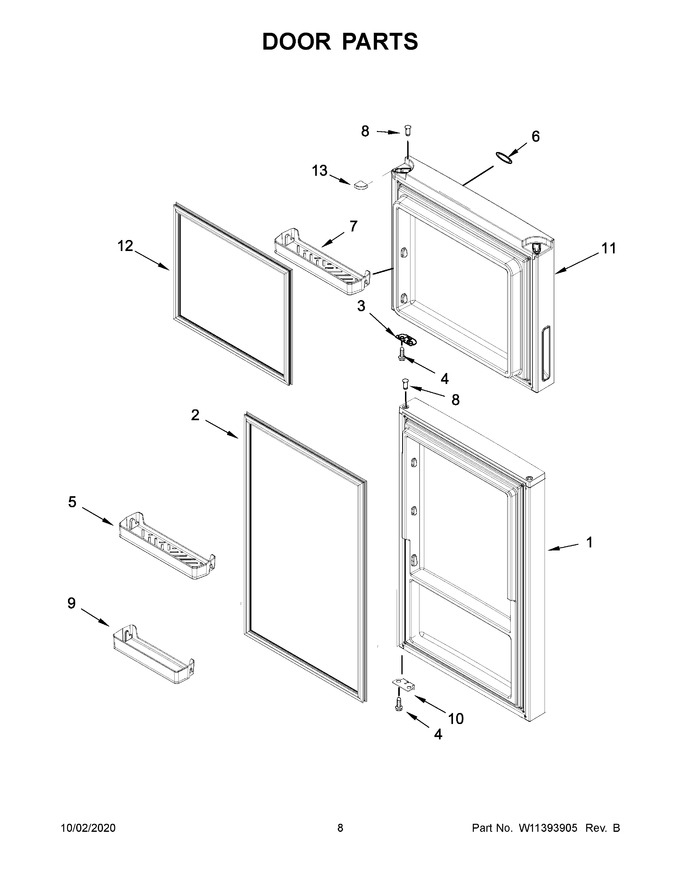

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11374238 | Door, Refrigerator (white) (Replaces: W11309091) |
|
$ 281.43 | |||||
| 2 | W11235133 | Gasket, Refrigerator Door (white) |
|
$ 258.70 | |||||
| 3 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 31.66 | ||||
| 4 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 5 | W11247889 | Door Bin, Refrigerator |
|
$ 131.43 | |||||
| 6 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 7 | W11247924 | Door Bin, Freezer |
|
- | |||||
| 8 | W11759045 | Thimble (white) (Replaces: W10492018) |
|
Immediately | $ 10.58 | ||||
| 9 | W11783665 | Bin, Bottle (Replaces: W11291426) |
|
Immediately | $ 54.02 | ||||
| 10 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 11 | W11374236 | Door, Freezer (white) (Replaces: W11309075) |
|
$ 191.03 | |||||
| 12 | W11736728 | Gasket, Freezer Door (white) (Replaces: W11235127) |
|
$ 178.15 | |||||
| 13 | W11246845 | Endcap (white) |
|
$ 41.18 | |||||
| 11A | W11374242 | Door, Freezer (black) (Replaces: W11315307) |
|
$ 215.49 | |||||
| 11B | W11374244 | Door, Freezer (stainless) (Replaces: W11315308) |
|
$ 235.18 | |||||
| 11C | W11380976 | Door, Freezer (black Stainless) (Replaces: W11315309) |
|
$ 268.69 | |||||
| 12A | W11235130 | Gasket, Freezer Door (black) |
|
$ 257.72 | |||||
| 12B | W11250314 | Gasket, Freezer Door (grey) |
|
Immediately | $ 259.81 | ||||
| 13A | W11246847 | Endcap (black) |
|
- | |||||
| 13B | W11246818 | Endcap (grey) |
|
$ 41.18 | |||||
| 13C | W11246854 | Endcap Right Hand (black) |
|
$ 39.81 | |||||
| 13C | W11246852 | Endcap Right Hand (white) |
|
$ 39.80 | |||||
| 13D | W11246849 | Endcap Right Hand (grey) |
|
$ 41.18 | |||||
| 1A | W11374240 | Door, Refrigerator (black) (Replaces: W11314912) |
|
$ 281.41 | |||||
| 1B | W11374241 | Door, Refrigerator (stainless) (Replaces: W11315264) |
|
$ 354.21 | |||||
| 1C | W11380977 | Door, Refrigerator (black Stainless) (Replaces: W11315316) |
|
$ 353.28 | |||||
| 2A | W11235134 | Gasket, Refrigerator Door (black) |
|
$ 258.72 | |||||
| 2B | W11250318 | Gasket, Refrigerator Door (grey) |
|
$ 261.04 | |||||
| 8A | W11189115 | Thimble (black) (Replaces: W10334042) |
|
$ 10.89 | |||||
| 8B | W11766463 | Thimble (gray) (Replaces: W11289190) |
|
$ 10.58 |
