01 - Cover Sheet
02 - Cabinet Parts

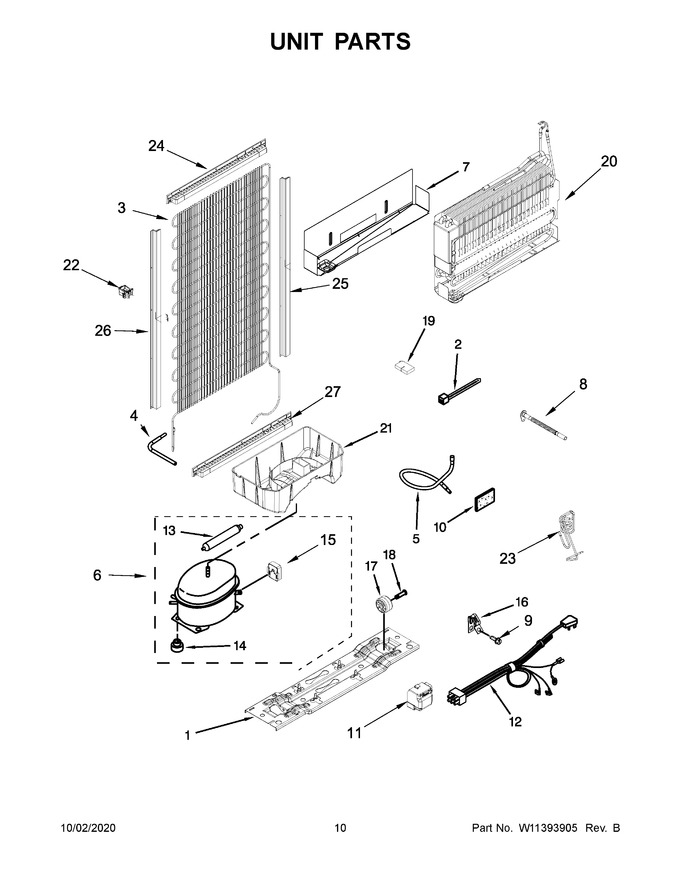

03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10378704 | Plate, Compressor Support |
|
$ 57.47 | |||||
| 2 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 3 | W11368894 | Condenser (also Order Lokring Parts) (Replaces: W11246374) |
|
$ 255.98 | |||||
| 4 | W11661102 | Tube, Process (Replaces: W11397507) |
|
$ 26.11 | |||||
| 5 | W11368892 | Tube, Suction (Replaces: W11329302) |
|
Immediately | $ 56.51 | ||||
| 6 | W11370578 | Compressor (also Order Lokring Parts) (Replaces: W11414303) |
|
Immediately | $ 429.46 | ||||
| 7 | W11179127 | Heat Sheild |
|
$ 37.04 | |||||
| 8 | W11512414 | Extension, Drain Tube (Replaces: W11353353) |
|
$ 67.32 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 10 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 11 | W11342284 | Cover, Terminal Board |
|
$ 88.20 | |||||
| 12 | W11248029 | Assembly, Power Cord |
|
$ 148.56 | |||||
| 13 | W11490399 | Drier (also Order Lokring Parts) (Replaces: W11107829) |
|
Immediately | $ 26.01 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 6.47 | ||||
| 15 | W11368891 | Assembly, Inverter Box (Replaces: W11345122) |
|
Immediately | $ 337.60 | ||||
| 16 | W11234470 | Clamp, Power Cord (Replaces: W10303628) |
|
$ 18.96 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 19 | W10261299 | Wedge, Evaporator |
|
- | |||||
| 20 | W11368877 | Evaporator Assembly (with Defrost Heater) (also Order Lokring Parts) (Replaces: W11186306) |
|
Immediately | $ 293.44 | ||||
| 21 | W11407710 | Tray, Water |
|
$ 74.21 | |||||
| 22 | WP326020544 | Support, Condenser (Replaces: 326020544) |
|
$ 9.31 | |||||
| 23 | W11548212 | Coil, Discharge (Replaces: W11328031) |
|
- | |||||
| 24 | W11264206 | Condenser, Top Protection |
|
$ 74.24 | |||||
| 25 | W11377937 | Condenser, Side Protection (right) |
|
Immediately | $ 75.51 | ||||
| 26 | W11377938 | Condenser Side Protection (left) |
|
$ 72.95 | |||||
| 27 | W11264207 | Condenser, Bottom Protection |
|
$ 74.31 | |||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | W11504449 | Evaporator Lokring Parts ((4/2-nr Al-00) Capillary) (Replaces: W11400737) |
|
Immediately | $ 32.09 | ||||
| NI | W11504418 | Condenser Lokring Parts ((8/7-nr-ms-00) Process Stub) (Replaces: W11400726) |
|
Immediately | $ 22.73 | ||||
| NI | W11504420 | Compressor Lokring Parts ((8/6-nr-ms-00) Suction Line) (Replaces: W10895723) |
|
Immediately | $ 22.19 | ||||
| NI | W11504419 | Compressor Lokring Parts ((8/7- Nr-al-00) Suction Line(order 2)) (Replaces: W11400725) |
|
Immediately | $ 30.16 | ||||
| NI | W11504448 | Dryer Lokring Parts ((5/1.8-nr-al-00) Outlet) (Replaces: W11400723) |
|
Immediately | $ 41.64 | ||||
| NI | W11506623 | Dryer Lokring Parts ((5/5-nk-ms-00) Inlet) (Replaces: W10896710) |
|
Immediately | $ 18.86 | ||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 82.22 | ||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 117.64 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 115.28 | ||||
| NI | W11225184 | Evaporator Lokring Parts ((200-mm- Al-00) Aluminum Suctionline(order 2)) (Replaces: W11187707) |
|
Immediately | $ 61.09 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
